Design options for membrane keypads

What matters most when designing a membrane keypad? From front layer artwork and embossing to tactile feedback, backlighting and display integration, this guide shows how a membrane keypad is built up layer by layer.

The guide is made for industrial designers and engineers working with membrane keypads in products where space is limited and many functions must be integrated early to ensure good usability and efficient production.

Download design guide to membrane keypads

What you’ll find in the guide

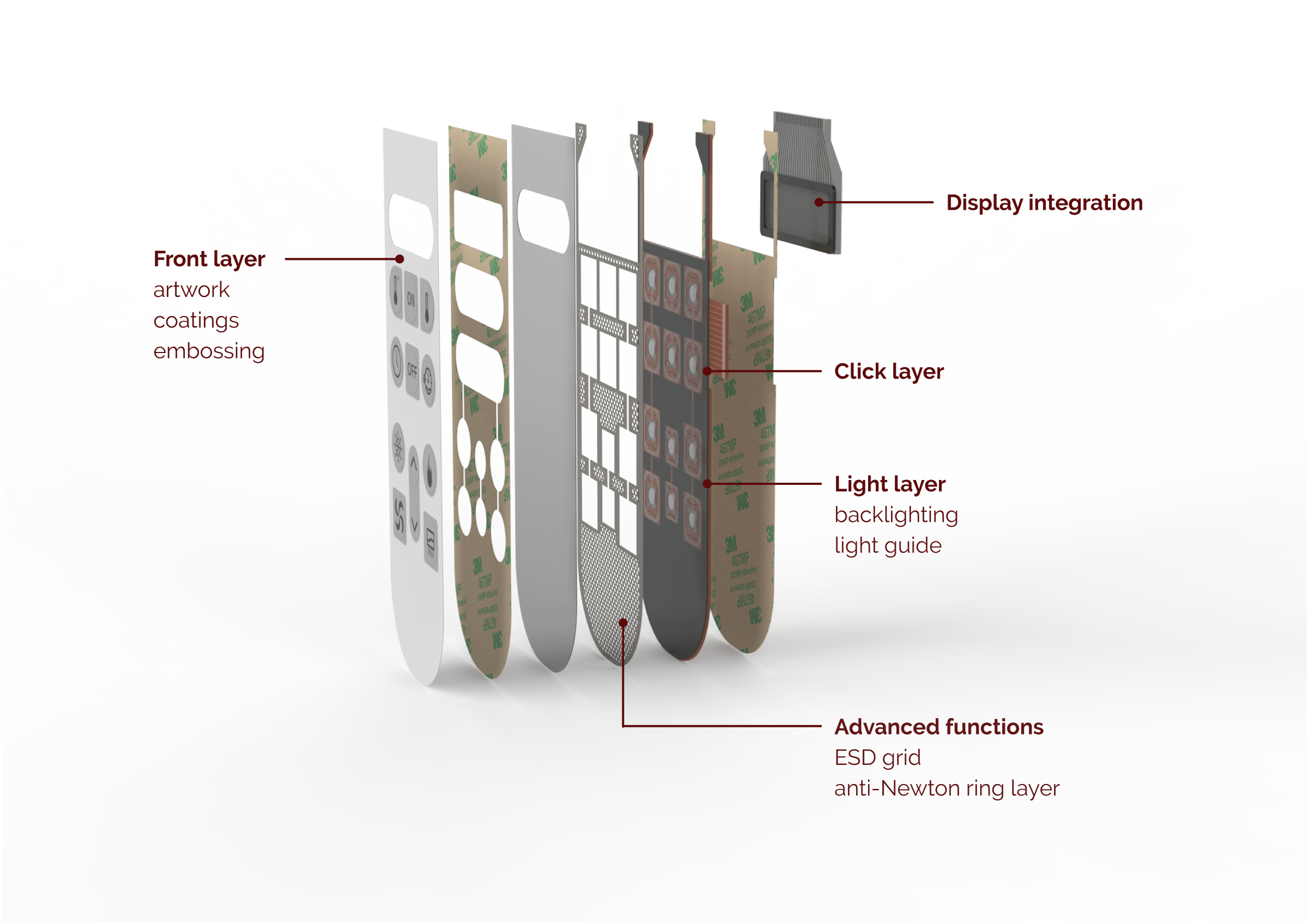

The guide follows the membrane keypad layer by layer, showing how functions such as graphics, tactility, lighting and protection are built directly into the stack-up. It covers key design areas including:

front layer and artwork
embossing and key definition
click and tactile feedback
backlighting and light control
functional layers such as ESD protection
display integration

Each section focuses on practical considerations and typical trade-offs, helping you make clear, well-grounded design choices early in the process.
