Rotary Sensors - Multi Turn

Multi-turn rotary sensors are designed to measure angular positions over multiple 360° rotations, making them ideal for applications requiring extended range or continuous rotation tracking.



Novotechnik’s non-contacting multi-turn sensors combine absolute position sensing with wear-free operation and high resistance to environmental stress.

These sensors are perfectly suited for applications in robotics, material handling, and energy systems, where long-term stability, precision, and robust performance are critical – even under demanding conditions such as vibrations, moisture, and extreme temperatures.

  • Absolute, non-contacting NOVOHALL multi turn rotary sensor in 36.5 mm all-metal housing. Analog and digital interfaces. Different versions in solid or hollow shafts and heavy-duty.



    • Range max: 5760°
    • Interface: Voltage, Current, Ratiometric, SSI
    • Protection: IP65, IP67, IP69
    • Temperature: -30° C to 85° C



    More about RMB-3600

  • Absolute, non-contacting multi turn rotary sensor with revolutionary True-Power-On NOVOTURN technology and smart sensor functions for Industry 4.0. Very accurate, energy and space saving.



    • Range max: 15840°
    • Interface: IO-Link, Ratiometric, CANopen, CAN SAE J1939
    • Protection: IP54, IP65, IP67
    • Temperature: -40° C to 85° C



    More about MC1-2800

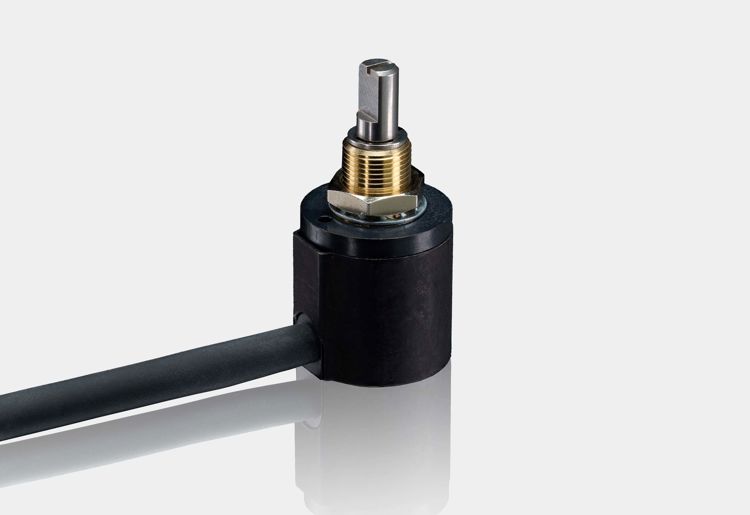

  • Absolute, non-contacting multi turn rotary sensor with revolutionary True-Power-On NOVOTURN technology and smart sensor functions for Industry 4.0. Easy mounting via bushing mount.



    • Range max: 15840°
    • Interface: CANopen, CAN SAE J1939
    • Protection: IP50, IP65
    • Temperature: -40° C to 85° C



    More about MZ1-2200

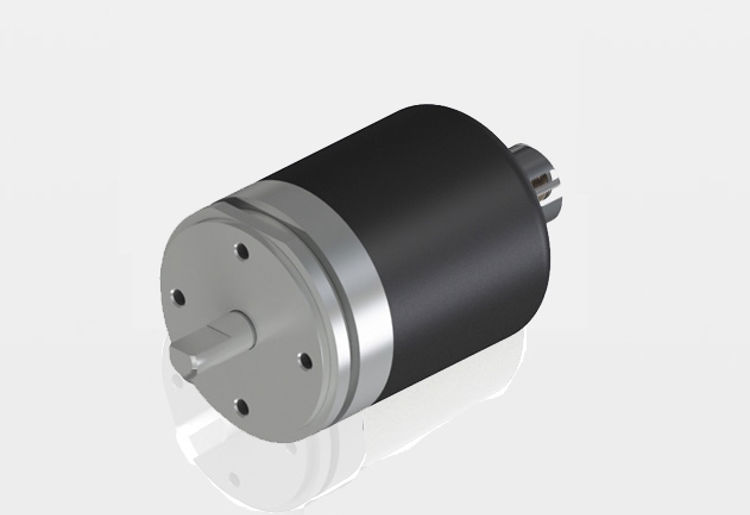

  • Absolute, non-contacting multi turn rotary sensor with revolutionary True-Power-On NOVOTURN technology in 36.5 mm all-metal housing. Different versions in solid or hollow shafts and heavy-duty.



    • Range max: 15840°
    • Interface: CANopen, CAN SAE J1939, IO-Link
    • Protection: IP65, IP67, IP69
    • Temperature: -30° C to 85° C



    More about MB1-3600

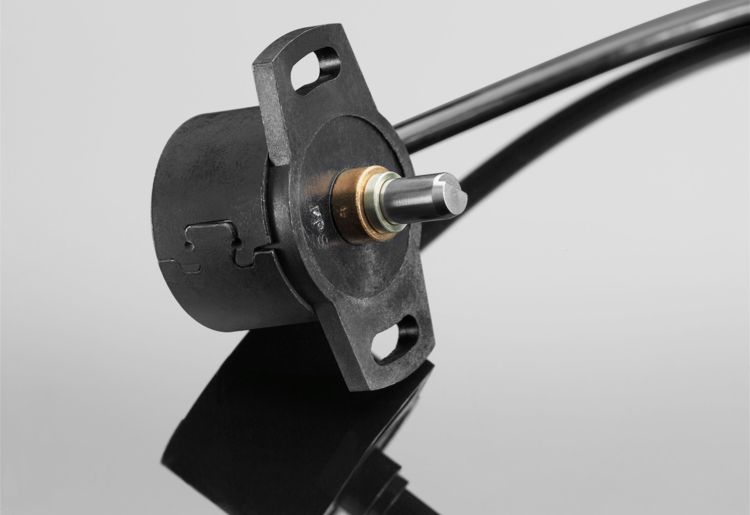

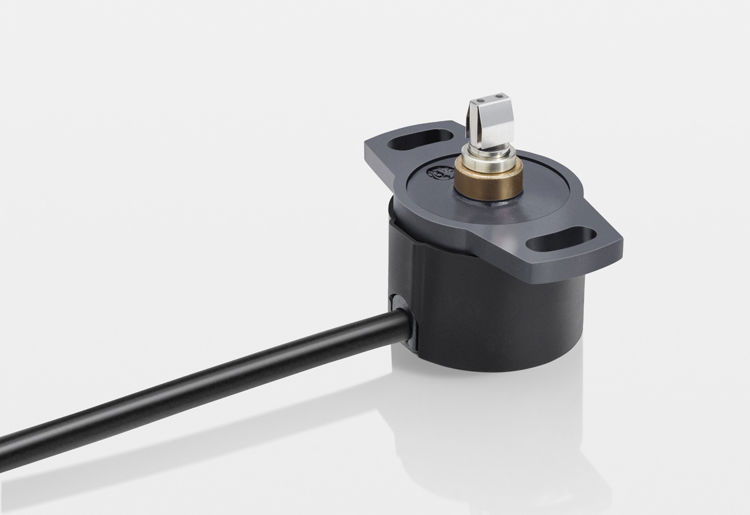

  • Absolute, non-contacting multi turn rotary sensor with revolutionary NOVOTURN technology. Very compact, accurate and durable.



    • Range max: 5760°
    • Interface: Voltage, Current, Ratiometric, SSI, SPI
    • Protection: IP54, IP65, IP67
    • Temperature: -40° C to 85° C



    More about RSM-2800

  • Absolute high-precision potentiometric rotary sensor with reduction gear



    • Range max: 3845°
    • Interface: Ratiometric
    • Protection: IP40
    • Temperature: -40° C to 100° C



    More about GP

Rotary Sensors - Single Turn

Single-turn rotary sensors from Novotechnik are ideal for measuring angular positions within a 360° range. These sensors are available in both contactless and touchless versions, ensuring high accuracy, long service life, and maintenance-free operation.

With a wide selection of mechanical designs and electrical interfaces, they can be easily integrated into automation systems, mobile machinery, and harsh environments.



Many models feature high ingress protection ratings and wide operating temperature ranges, making them a reliable choice for precise, real-time angle detection.

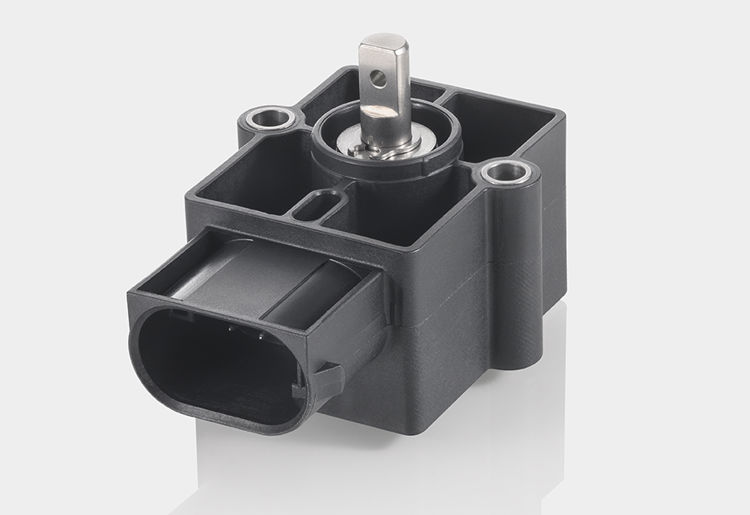

  • Absolute, non-contacting, redundant NOVOHALL rotary sensor. For use in mobile and safety-related applications, resilient in harsh environments.



    • Range max: 360°
    • Interface: Voltage, Current, Ratiometric, CANopen, CAN SAE J1939
    • Protection: IP67, IP69
    • Temperature: -40° C to 125° C



    More about RSA-3200

  • Absolute, non-contacting NOVOHALL single turn rotary sensor in 36.5 mm all-metal housing. Analog and digital interfaces. Different versions in solid or hollow shafts and heavy-duty.



    • Range max: 360°
    • Interface: Voltage, Current, Ratiometric, Incremental
    • Protection: IP65, IP67, IP69
    • Temperature: -30° C to 85° C



    More about RSB-3600

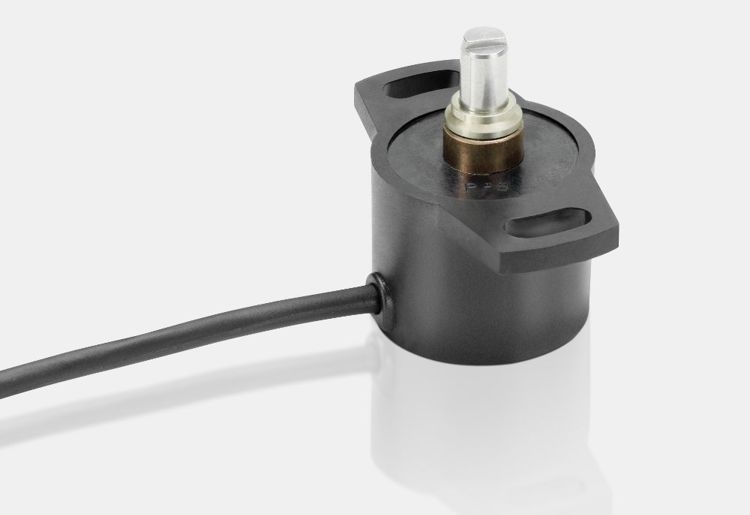

  • Absolute, non-contacting NOVOHALL rotary sensor for use in harsh environments. Large selection of analog and digital interfaces. Highly accurate and very attractively priced.



    • Range max: 360°
    • Interface: Voltage, Current, Ratiometric, SSI, SPI, Incremental
    • Protection: IP54, IP65, IP67
    • Temperature: -40° C to 85° C



    More about RSC-2800

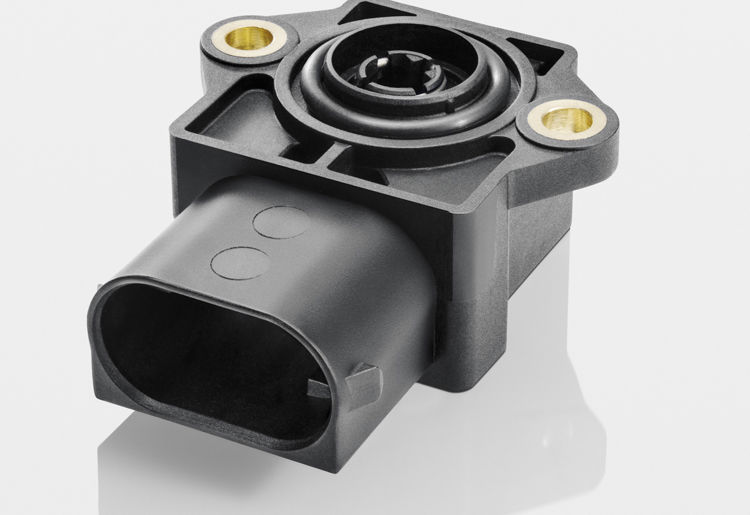

  • Not recommended for new designs. Compact, non-contacting NOVOHALL rotary sensor in redundant version for automotive applications.



    • Range max: 360°
    • Interface: Ratiometric
    • Protection: IP67, IP69
    • Temperature: -40° C to 125° C



    More about RSC-3200

  • Absolute, non-contacting, redundant NOVOHALL Heavy Duty Rotary Sensor. Designed for use in mobile und safety-related applications under extreme environmental conditions.



    • Range max: 360 °
    • Interface: Current, CANopen
    • Protection: IP67, IP69
    • Temperature: -40° C to 85° C



    More about RXS-7900

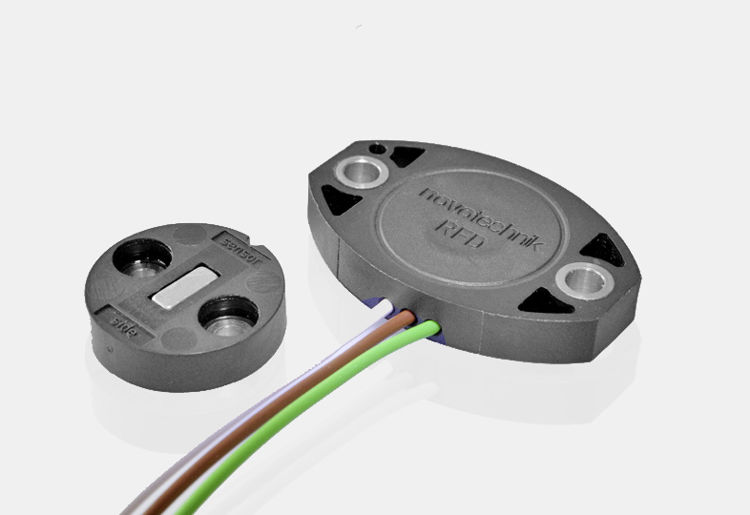

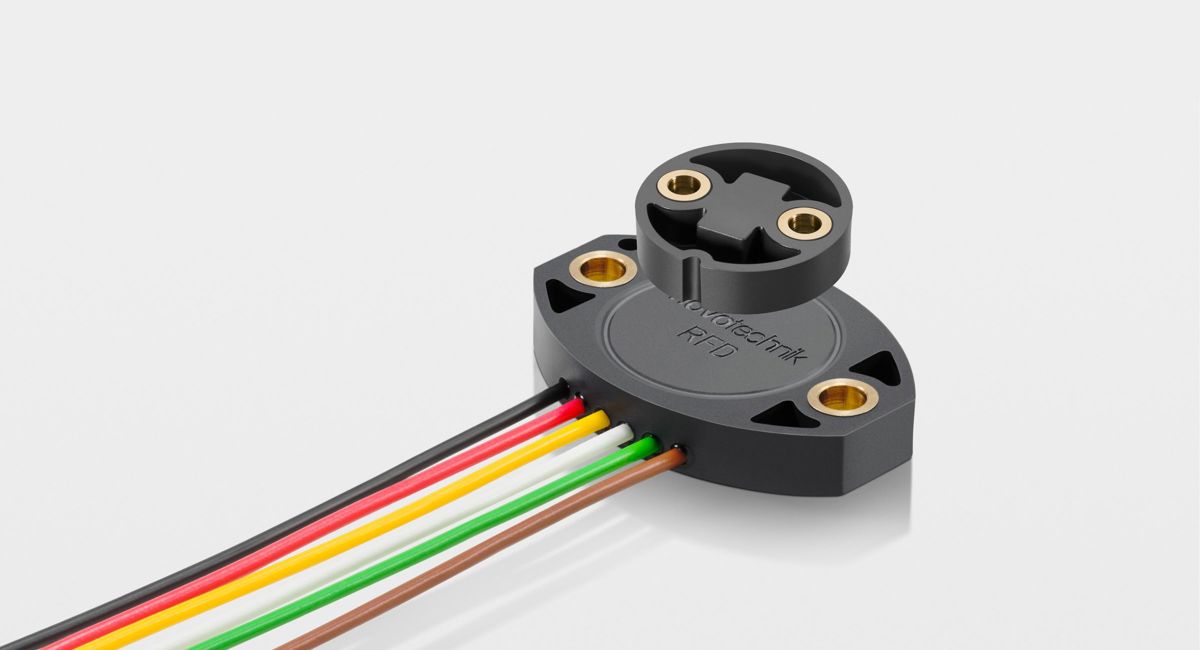

  • Touchless, compact and cost-effective NOVOHALL rotary sensor for small installation spaces.



    • Range max: 360°
    • Interface: Ratiometric
    • Protection: IP67, IP69
    • Temperature: -40° C to 125° C



    More about RFD-4000

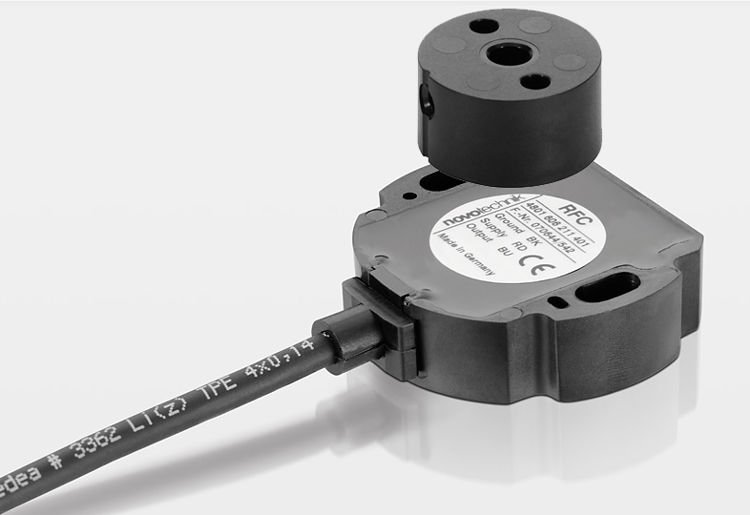

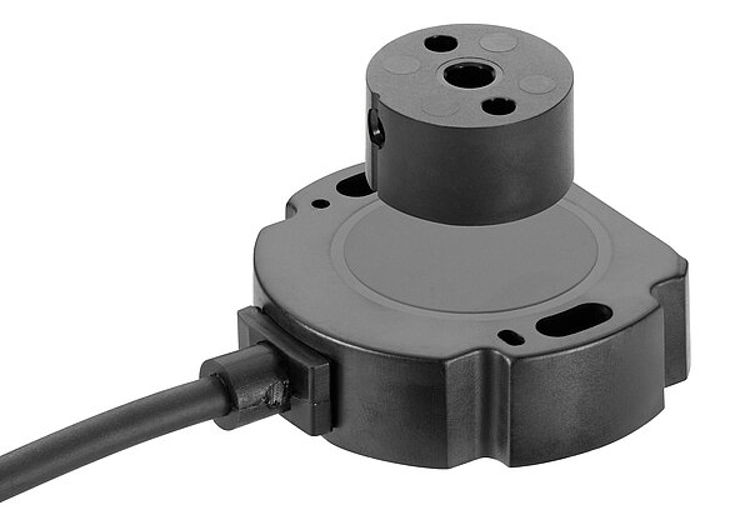

  • Robust NOVOHALL touchless, absolute rotary sensor. Large selection of analog , digital and fieldbus interfaces. Highly accurate and very attractively priced.



    • Range max: 360°
    • Interface: Voltage, Current, Ratiometric, IO-Link, CANopen, SSI, CAN SAE J1939, SPI, Incremental
    • Protection: IP67, IP68, IP69
    • Temperature: -40° C to 105° C



    More about RFC-4800

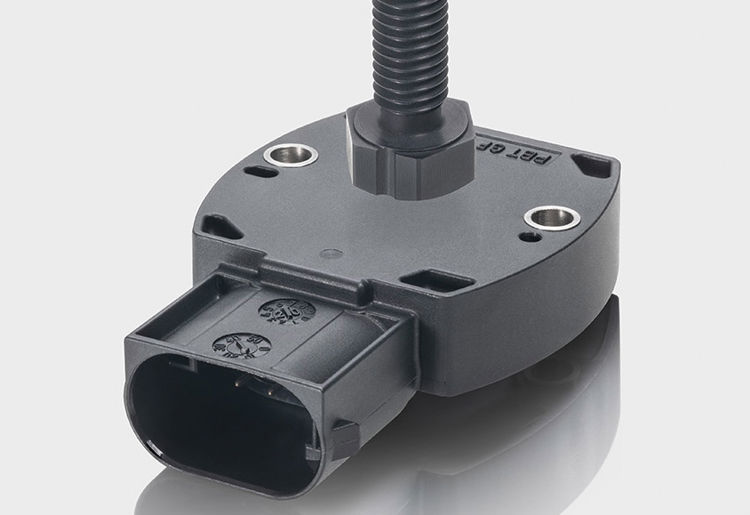

  • Absolute NOVOHALL touchless rotary sensor. Suitable for high temperature applications. Large selection of analog and fieldbus interfaces.



    • Range max: 360°
    • Interface: Voltage, Current, Ratiometric, CANopen, CAN SAE J1939
    • Protection: IP67, IP68, IP69
    • Temperature: -40° C to 125° C



    More about RFE.3200

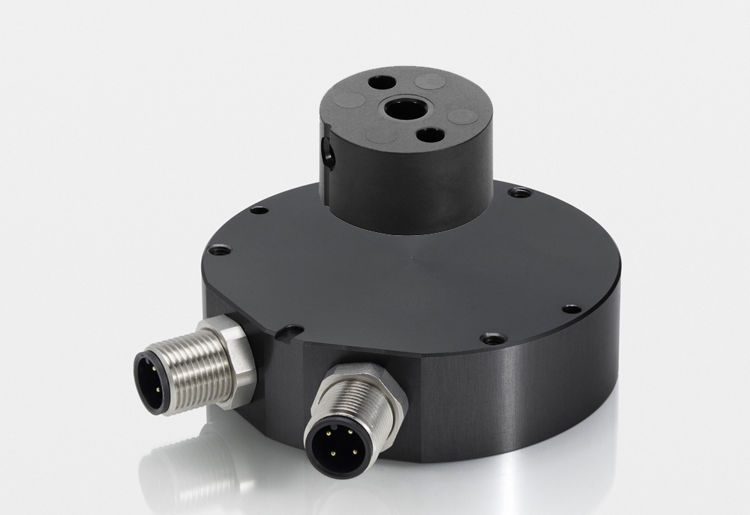

  • Absolute touchless, redundant NOVOHALL heavy duty rotary sensor. Designed for use in mobile und safety-related applications under extreme environmental conditions.



    • Range max: 360°
    • Interface: Current, CANopen
    • Protection: IP67, IP69
    • Temperature: -40° C to 85° C



    More about RFX-6900

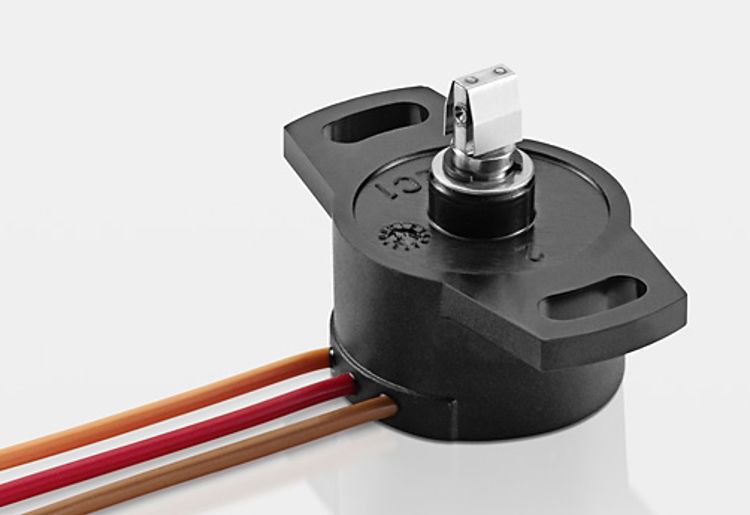

  • Absolute potentiometric rotary sensor for use in various applications. Compact and robust. Simple installation and adjustment.



    • Range max: 345°
    • Interface: Ratiometric
    • Protection: IP54
    • Temperature: -40° C to 120° C



    More about SP-2800

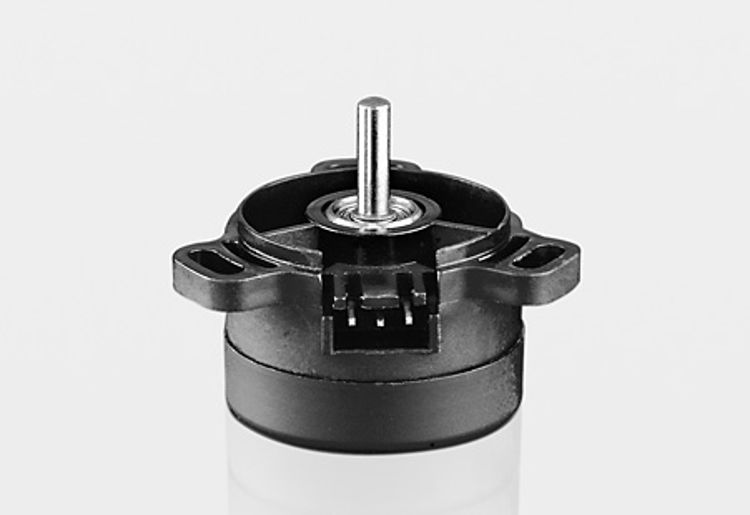

  • Absolute, potentiometric rotary sensor. Precise, compact and inexpensive. Simple installation and adjustment.



    • Range max: 355°
    • Interface: Ratiometric
    • Protection: IP40
    • Temperature: -40° C to 85° C



    More about SP-2500

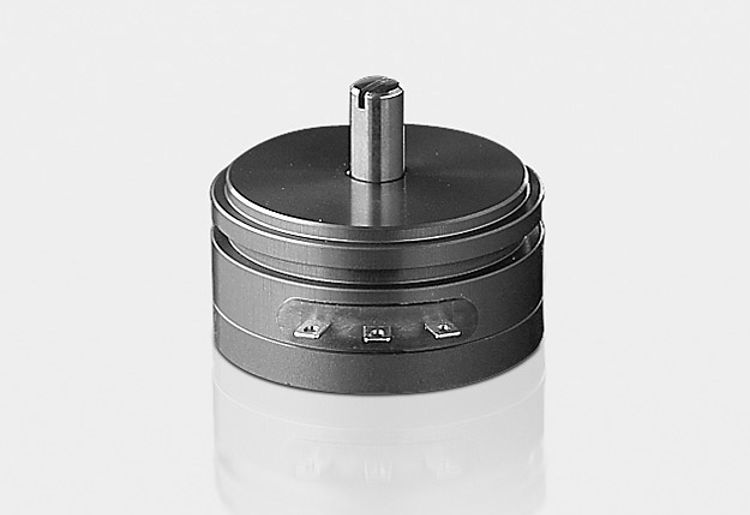

  • Absolute high-precision potentiometric rotary sensor, synchro housing 11.



    • Range max: 345°
    • Interface: Ratiometric
    • Protection: IP40
    • Temperature: -40° C to 100° C



    More about P-2500

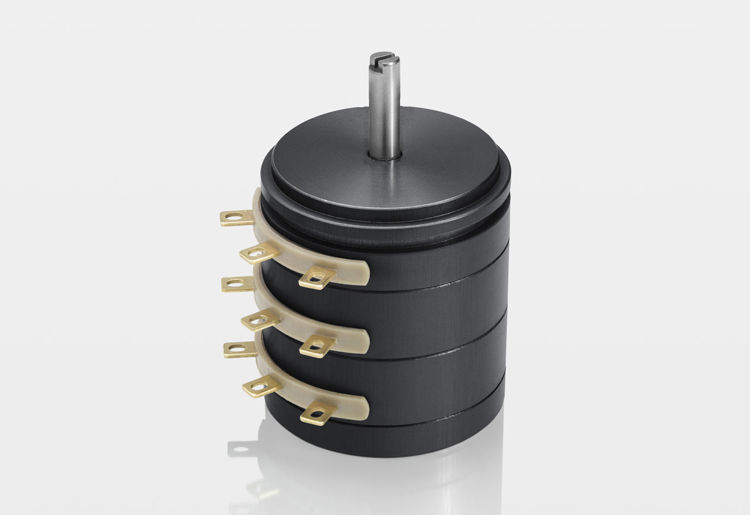

  • Absolute high-precision potentiometric rotary sensor in multiple cup version.



    • Range max: 345°
    • Interface: Ratiometric
    • Protection: IP40
    • Temperature: -40° C to 100° C



    More about P-2500 Multiple Section

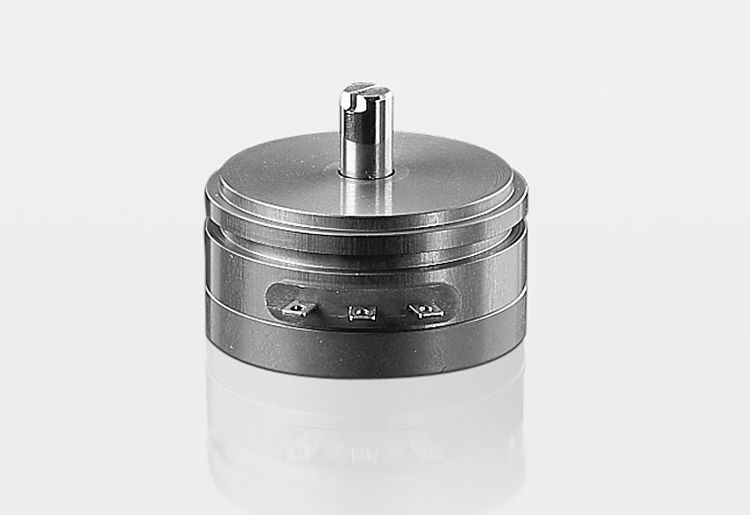

  • Absolute high-precision potentiometric rotary sensor, synchro housing 15.



    • Range max: 350°
    • Interface: Ratiometric
    • Protection: IP40
    • Temperature: -40° C bis 100° C



    More about P-4500

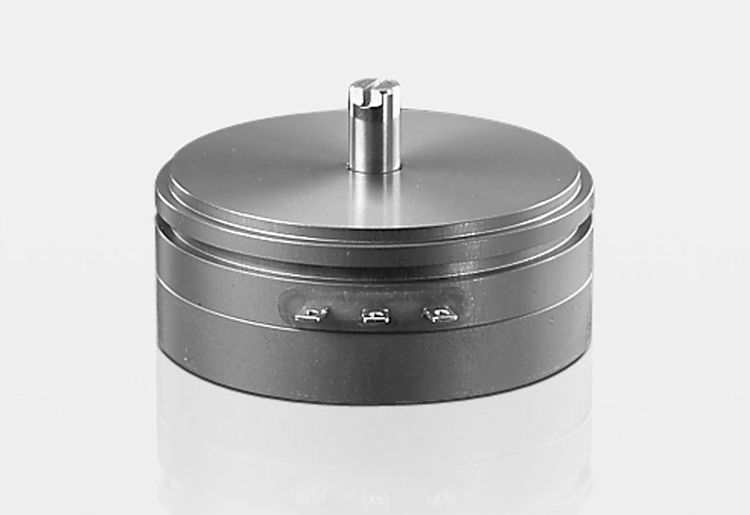

  • Absolute high-precision potentiometric rotary sensor, synchro housing 20.



    • Range max: 355°
    • Interface: Ratiometric
    • Protection: IP40
    • Temperature: -40° C to 100° C



    More about P-6500

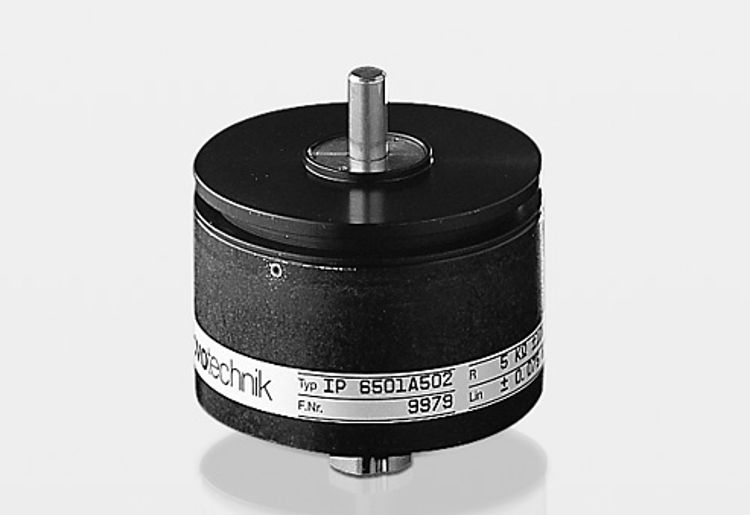

  • Absolute high-precision potentiometric rotary sensor. Robust and sealed design.



    • Range max: 355°
    • Interface: Ratiometric
    • Protection: IP65
    • Temperature: -40° C to 100° C



    More about IP-6500

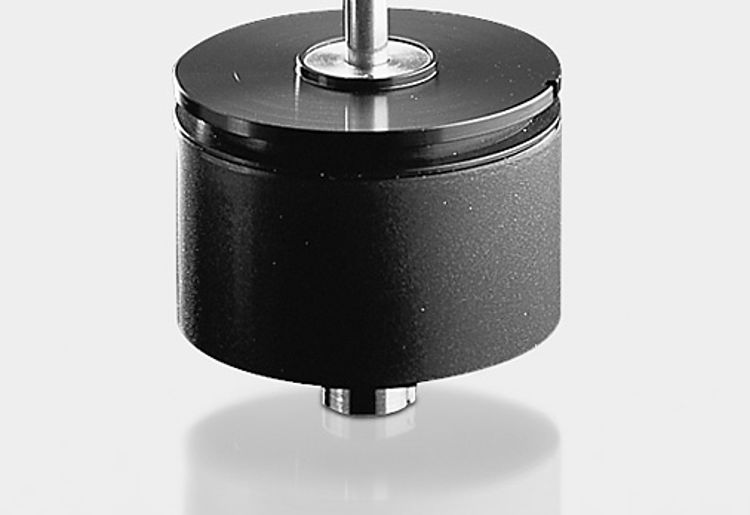

  • Absolute high-precision potentiometric rotary sensor. Robust and sealed design with current interface.



    • Range max: 345°
    • Interface: Current
    • Protection: IP65
    • Temperature: -25° C to 70° C



    More about IPE-6000

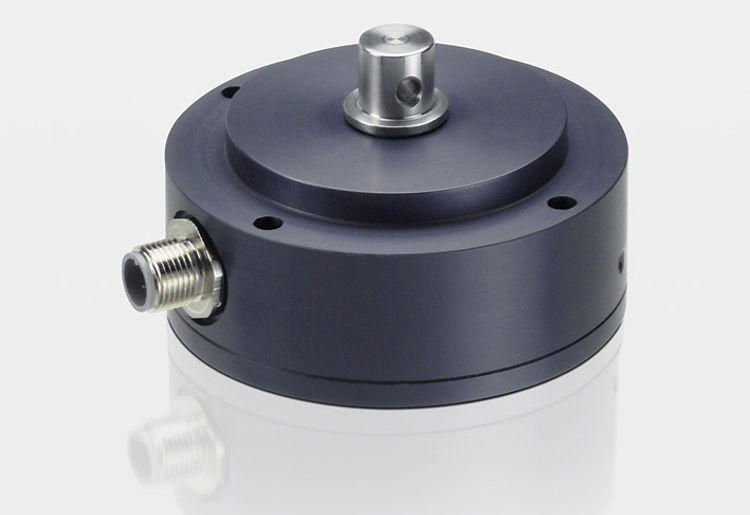

  • Absolute high-precision potentiometric rotary sensor for use in harsh operating conditions. Extremely robust, sealed and corrosion resistant.



    • Range max: 350°
    • Interface: Ratiometric
    • Protection: IP67, IP69
    • Temperature: -40° C to 105° C



    More about IPX-7900

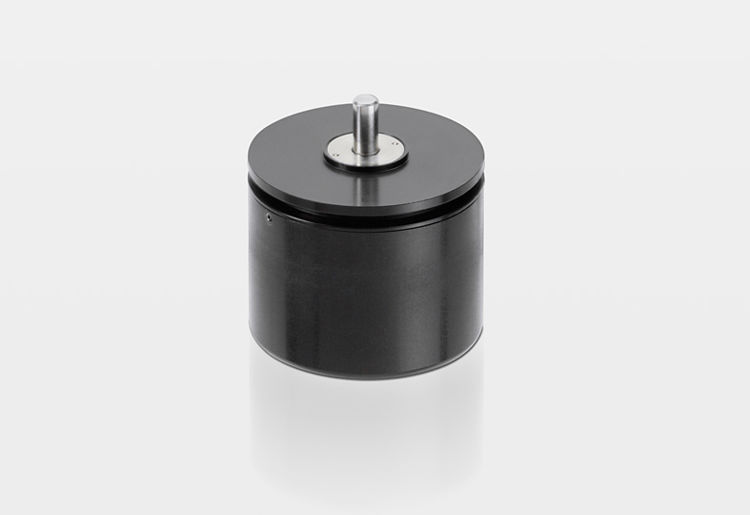

  • Absolute high-precision rotary sensor in robust design, with gap-free output voltage across full 360°.



    • Range max: 360°
    • Interface: Ratiometric
    • Protection: IP65
    • Temperature: 0° C to 70° C



    More about AW-360

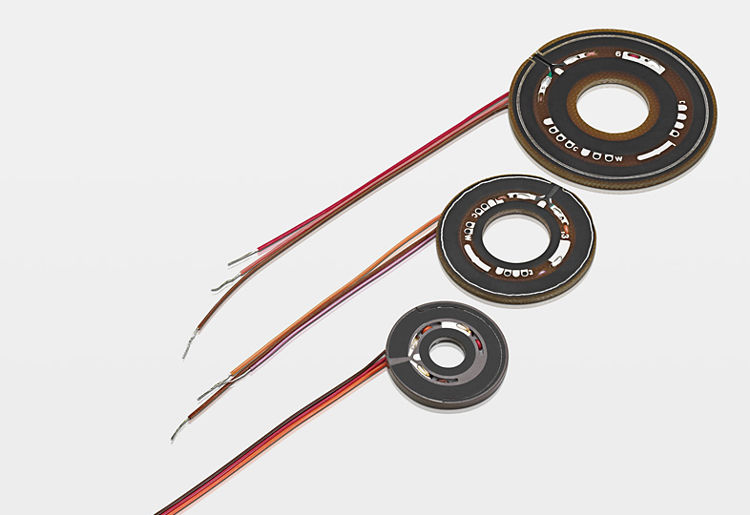

  • Absolute resistance element / wiper combination with high accuracy. Suitable for flat installation spaces. Customised versions possible on request.



    • Range max: 355°
    • Interface: Ratiometric
    • Protection: IP00
    • Temperature: -40° C to 100° C



    More about PRS

Linear Position Transducers

Linear position transducers must meet demanding requirements, including robustness, high speed, precision, and, increasingly, seamless communication capabilities in line with Industry 4.0 standards.

As an official distributor of Novotechnik, we offer the comprehensive portfolio with solutions tailored to a wide range of applications. Novotechnik provides reliable and innovative transducers to meet even the most complex automation challenges.

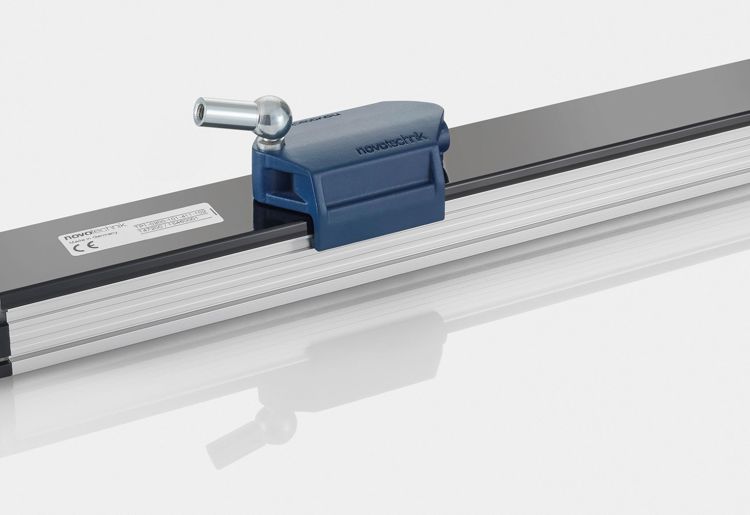

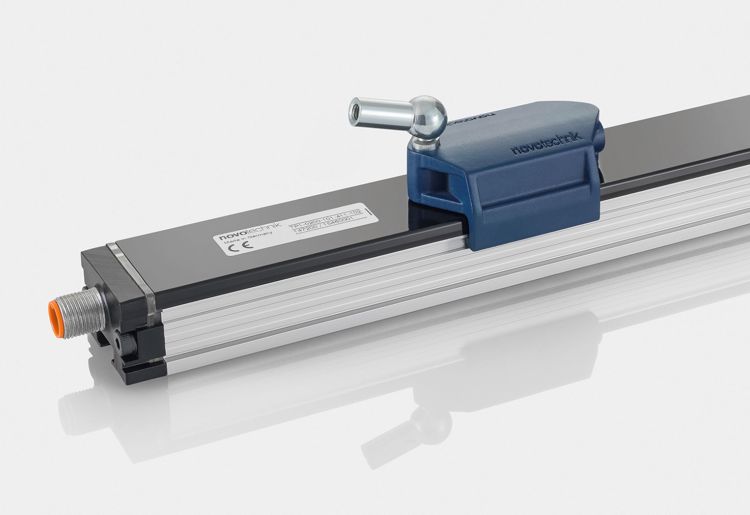

  • Absolute position transducers for high dynamic positioning tasks. Inductive measurement principle, touchless position detection with free position markers; unlimited mechanical life.



    • Range max: 1000 mm
    • Interface: Voltage, Current, IO-Link, SSI, CANopen
    • Protection: IP67
    • Temperature: -40° C to 85° C



    More about TF1

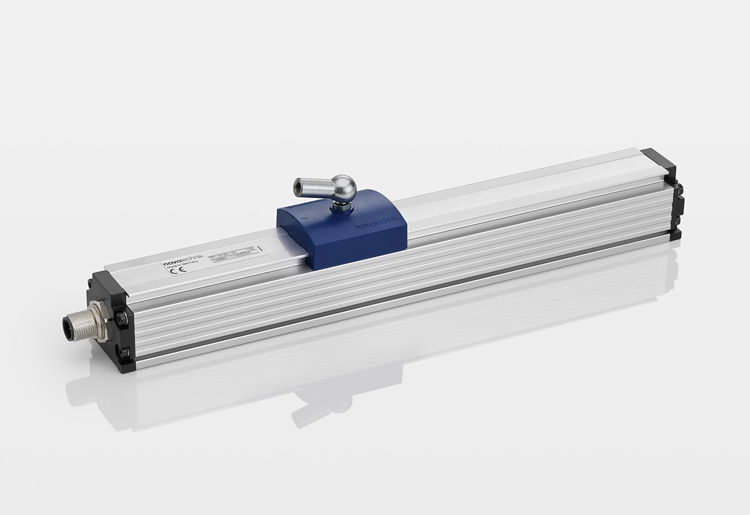

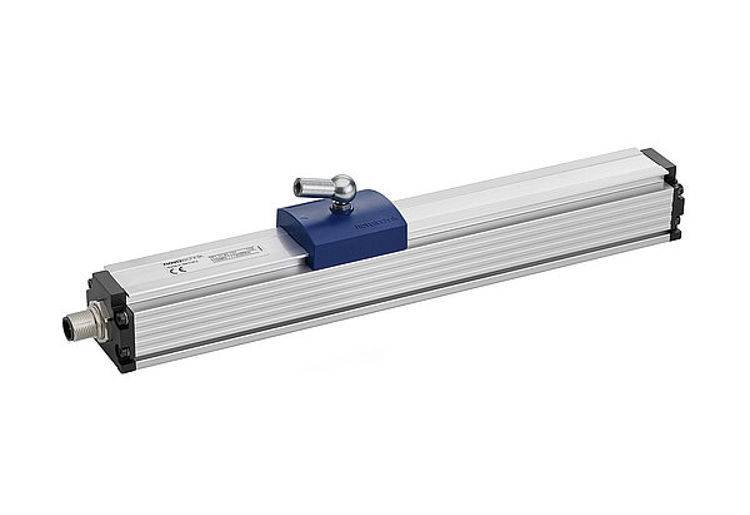

  • Absolute position transducers in robust profile design; NOVOSTRICTIVE non-contacting, magnetostrictive measurement principle, non-contact position detection with free position markers; unlimited mechanical life.



    • Range max: 4250 mm
    • Interface: Voltage, Current, IO-Link, SSI, CANopen, Incremental, Start-Stop
    • Protection: IP67, IP68
    • Temperature: -40° C to 85° C



    More about TP1

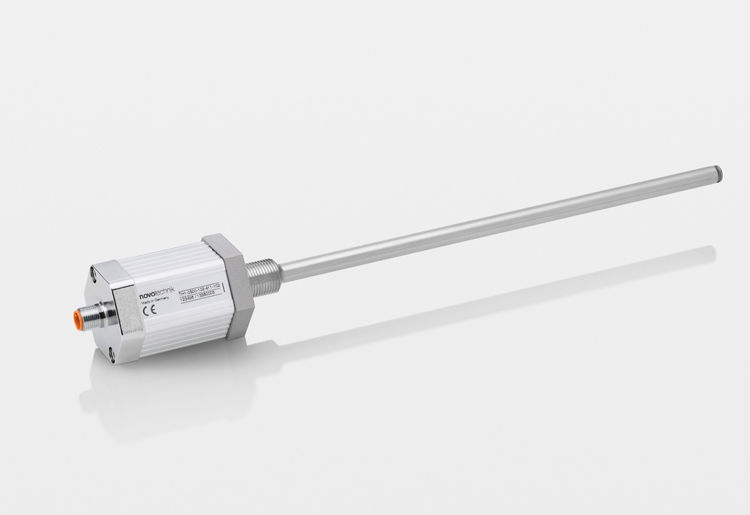

  • Absolute rod style position transducer for integration in cylinders. NOVOSTRICTIVE - non-contacting, magnetostrictive measurement principle; non-contact position detection with ring position marker.



    • Range max: 4250 mm
    • Interface: Voltage, Current, IO-Link, SSI, CANopen, Start-Stop
    • Protection: IP67, IP68
    • Temperature: -40° C to 85° C



    More about TH1

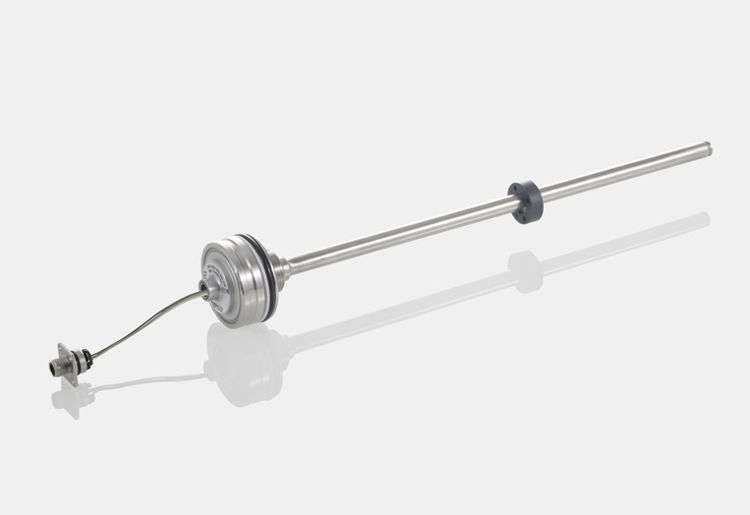

  • Absolute rod style position transducer for integration in cylinders especially for mobile applications; NOVOSTRICTIVE non-contacting, magnetostrictive measurement principle; non-contact position detection with ring-shaped position marker; unlimited mechanical life.



    • Range max: 2000 mm
    • Interface: Voltage, Current, CANopen, CAN SAE J1939
    • Protection: IP67, IP69
    • Temperature: -40° C to 105° C



    More about TM1 with plug-in flange

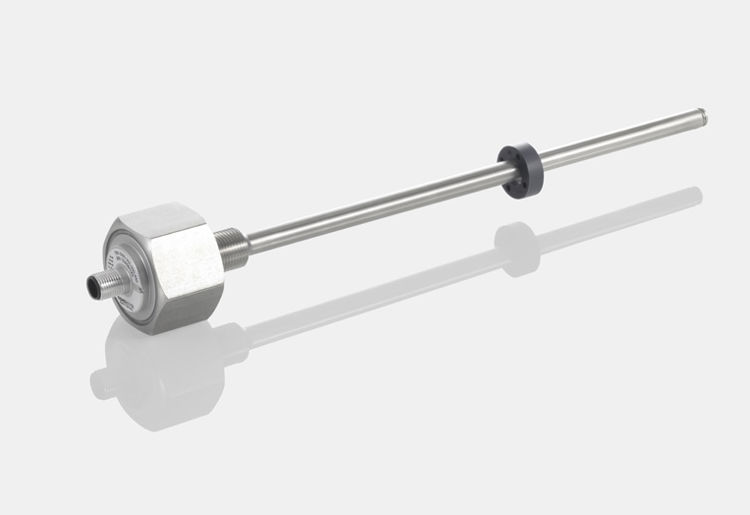

  • Absolute rod style position transducer for integration in cylinders especially for mobile applications; NOVOSTRICTIVE non-contacting, magnetostrictive measurement principle; non-contact position detection with ring-shaped position marker; unlimited mechanical life



    • Range max: 2000 mm
    • Interface: Voltage, Current, CANopen, CAN SAE J1939
    • Protection: IP67
    • Temperature: -40° C to 105° C



    More about TM1 with screw flange

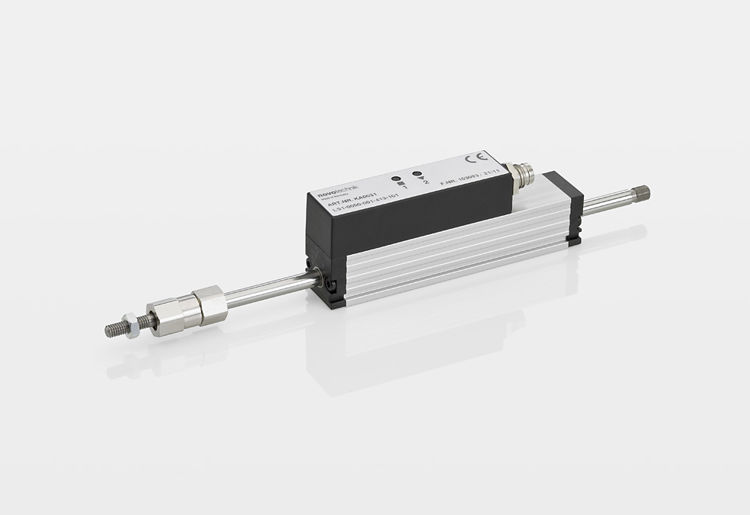

  • Absolute transducer in compact profile design with double-sided supported actuating rod; NOVOPAD non-contating, inductive measurement principle; Teach-in function with status LEDs; ball coupling for backlash- and shear force free operation , long life.



    • Range max: 200 mm
    • Interface: Voltage, Current
    • Protection: IP40
    • Temperature: -40° C to 100° C



    More about LS1 transducer

  • Absolute transducer in compact profile design with double-sided supported actuating rod and internal return spring; NOVOPAD non-contacting, inductive measuring principle, Teach-in function with status LEDs, probe tip with pressed-in hardened metal ball, long life.



    • Range max: 100 mm
    • Interface: Voltage, Current
    • Protection: IP40
    • Temperature: -40° C to 100° C



    More about LS1 with return spring

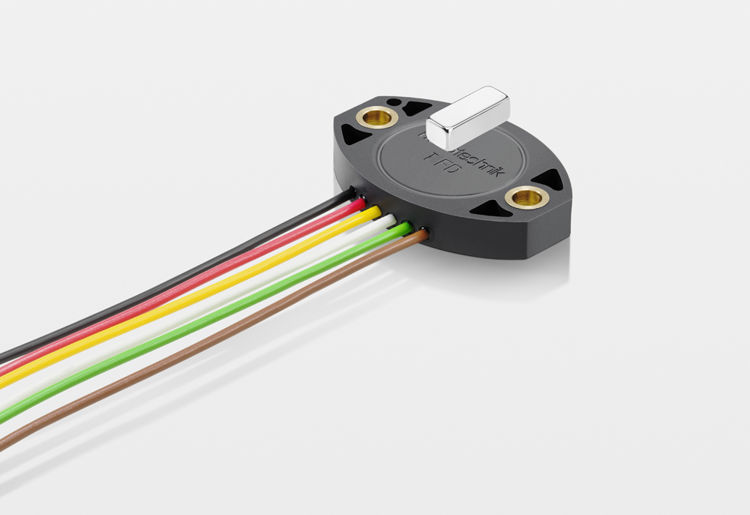

  • Absolute position transducers in compact, flat design. Non-contacting NOVOHALL measuring principle; Touchless position detection with position marker; Unlimited mechanical life.



    • Range max: 50 mm
    • Interface: Ratiometric
    • Protection: IP67, IP68, IP69
    • Temperature: -40° C to 125° C



    More about TFD-4000

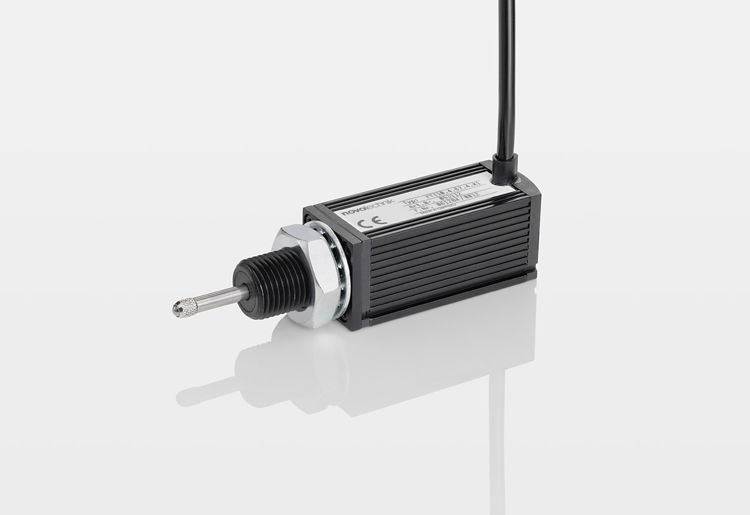

  • Absolute precision transducer with central mounting, durable because contactless measurement; completely encapsulated by a robust housing, temperature-resistant precision due to supplementary regulation winding.



    • Range max: 10 mm
    • Interface: Current
    • Protection: IP50, IP67
    • Temperature: -25° C to 70° C



    More about FTI

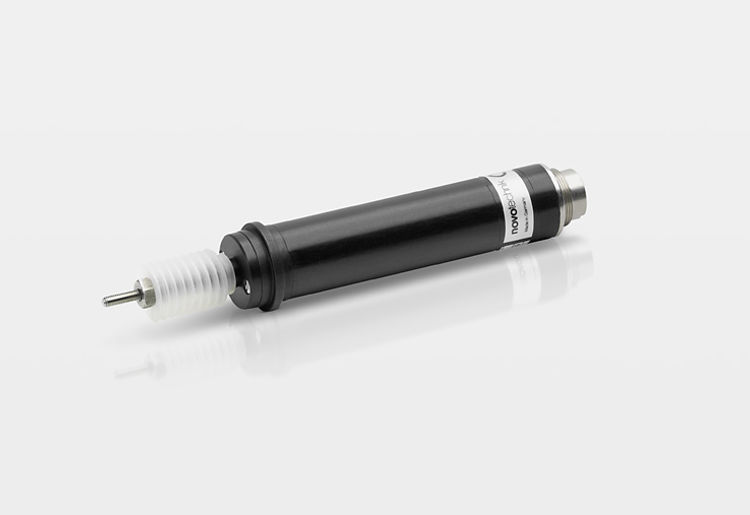

  • Absolute, inductive transducer with centering collar, integrated sealed hybrid electronic, DC power supply; floating DC voltage output, good temperature stability, maintenance-free plastic plain bearings and bellows; long long life.



    • Range max: 20 mm
    • Interface: Voltage
    • Protection: IP67
    • Temperature: -30° C bis 70° C



    More about F200

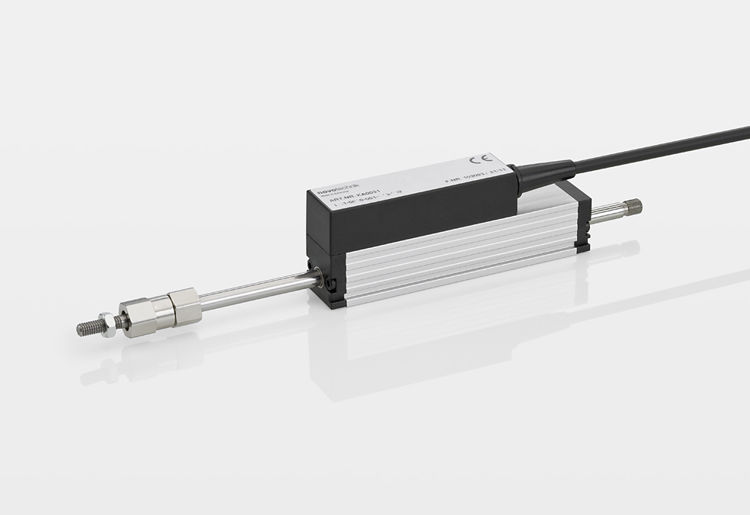

  • Absolut transducer for precise measuring and control applications with integrated signal processing. Replaceable without new calibration.



    • Range max: 150 mm
    • Interface: Voltage, Current
    • Protection: IP40
    • Temperature: -40° C to 85° C



    More about TE1

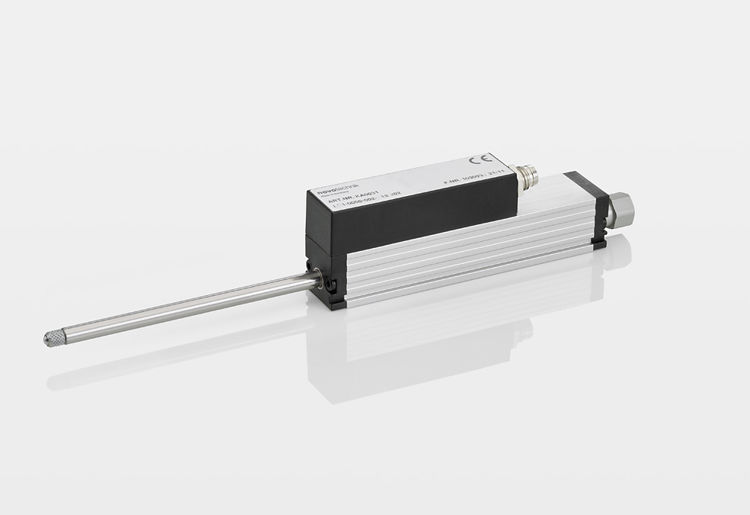

  • Absolut transducer with integrated signal processing. Designed for direct position measurement of fixed objects or contour scanning of moving objects by roller head. Replaceable without new calibration.



    • Range max: 100 mm
    • Interface: Voltage, Current
    • Protection: IP40
    • Temperature: -40° C to 85° C



    More about TE1 with return springs

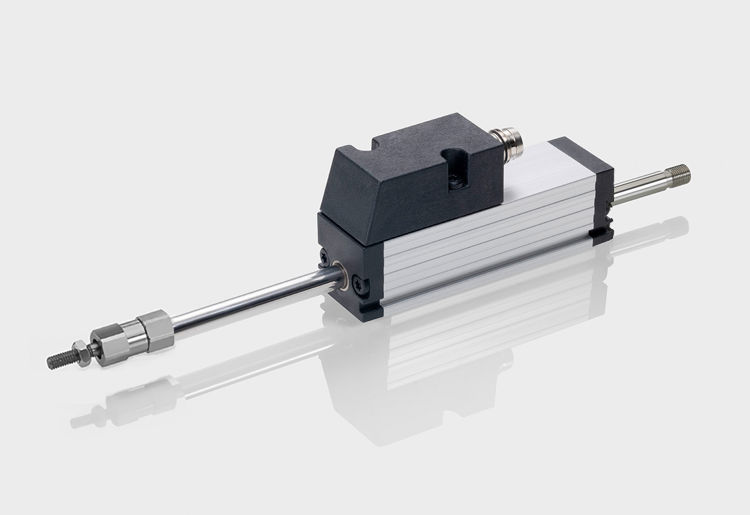

  • Absolut transducer with integrated signal processing. Designed for direct position measurement of fixed objects or contour scanning of moving objects by roller head. Replaceable without new calibration.



    • Range max: 150 mm
    • Interface: Ratiometric
    • Protection: IP40
    • Temperature: -30° C to 100° C



    More about T / TS

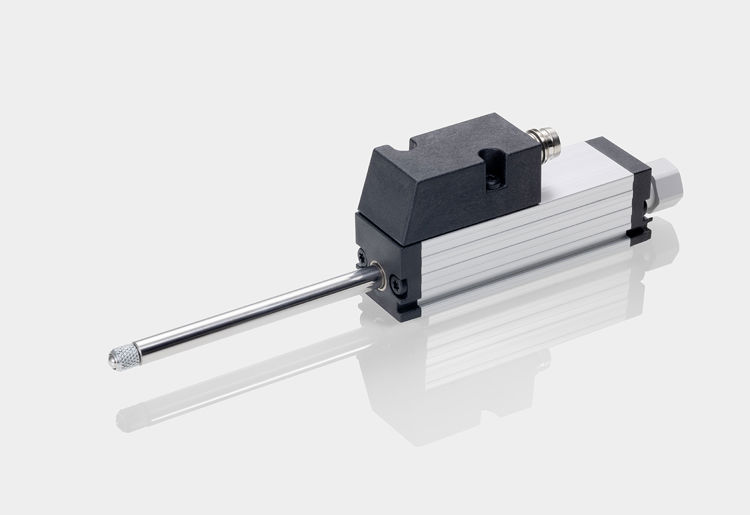

  • Absolut transducer with integrated signal processing. Designed for direct position measurement of fixed objects or contour scanning of moving objects by roller head. Replaceable without new calibration.



    • Range max: 100 mm
    • Interface: Ratiometric
    • Protection: IP40
    • Temperature: -30° C to 100° C



    More about TR / TRS return spring

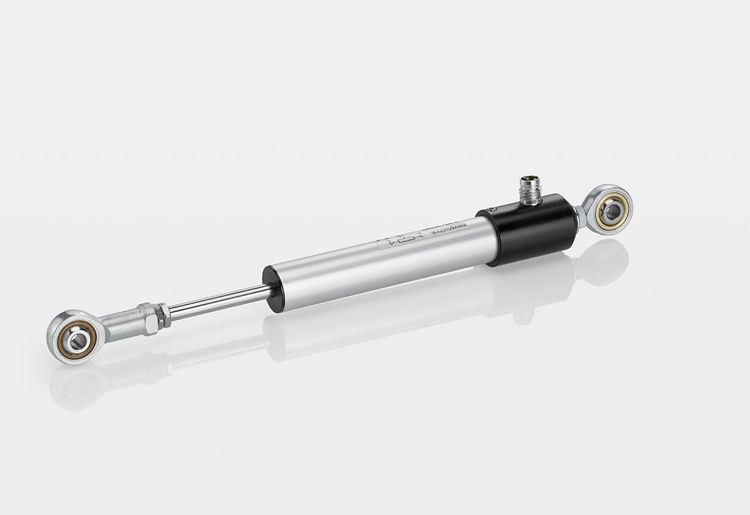

  • Potentiometric, absolut position transducer with double supported actuating rod; long life and high adjustment speed; decoupled wiper tap; easy to assemble via low-backlash pivot heads with a large angle of freedom; High protection class.



    • Range max: 300 mm
    • Interface: Ratiometric
    • Protection: IP67
    • Temperature: -40° C to 100° C



    More about TX2 Pivot Head Mounting

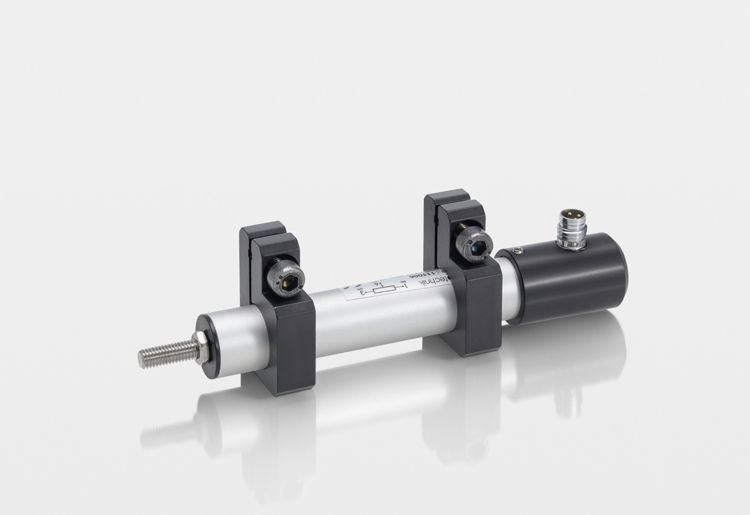

  • Potentiometric, absolut position transducer; robust design with metal flanges and pressure equalisation system with GORE-membran; long life and high adjustment speed; easy to assemble via low-backlash pivot heads with a large angle of freedom; High protection class.



    • Range max: 300 mm
    • Interface: Ratiometric
    • Protection: IP67
    • Temperature: -40° C to 100° C



    More about TX2 with mounting clamp

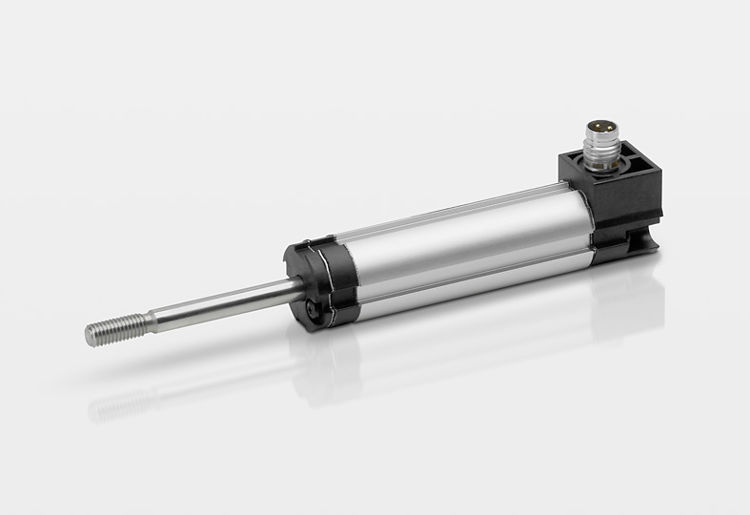

  • Potentiometric, absolut position transducer; pendular fixed slide bearing and decoupled wiper tap for stick-slip-free movement; long life and high adjustment speed; easy to assemble via snap in and all side mountable clamps.



    • Range max: 300 mm
    • Interface: Ratiometric
    • Protection: IP54
    • Temperature: -40° C to 85° C



    More about TEX rod type

  • Potentiometric, absolut position transducer without actuating rod with lengthwise coupling for reduced overall dimensions; metal wiper carrier; shear force free linkage via ball coupling; long life.



    • Range max: 200 mm
    • Interface: Ratiometric
    • Protection: IP54
    • Temperature: -40° C to 85° C



    More about TEX with return spring

  • Potentiometric , absolut position transducer; robust design with metal flanges, pressure equalisation system, GORE-membran and an additional guard tube for the actuating rod; long life and high adjustment speed; easy to assemble via low-backlash pivot heads with a large angle of freedom; High protection class.



    • Range max: 300 mm
    • Interface: Ratiometric
    • Protection: IP54
    • Temperature: -40° C to 85° C



    More about TEX pivot head mounting

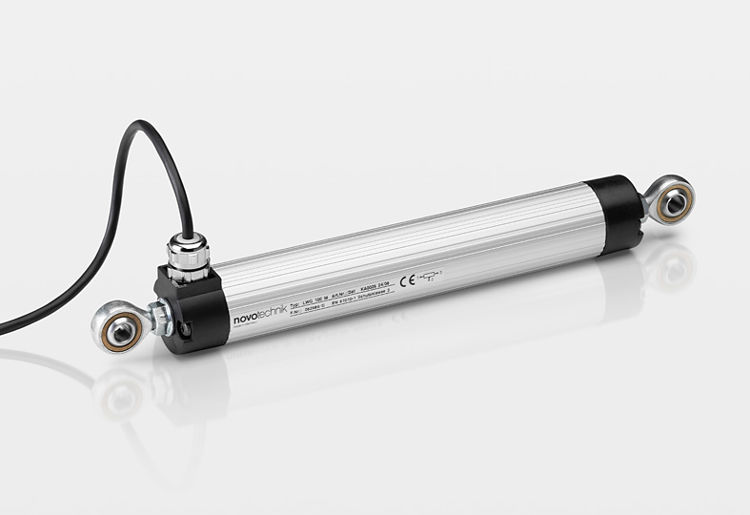

  • Potentiometric, absolut position transducer with double supported actuating rod; long life and high adjustment speed; decoupled wiper tap; easy to assemble via low-backlash pivot heads with a large angle of freedom; High protection class.



    • Range max: 750 mm
    • Interface: Ratiometric
    • Protection: IP65
    • Temperature: -30° C to 100° C



    More about LWG

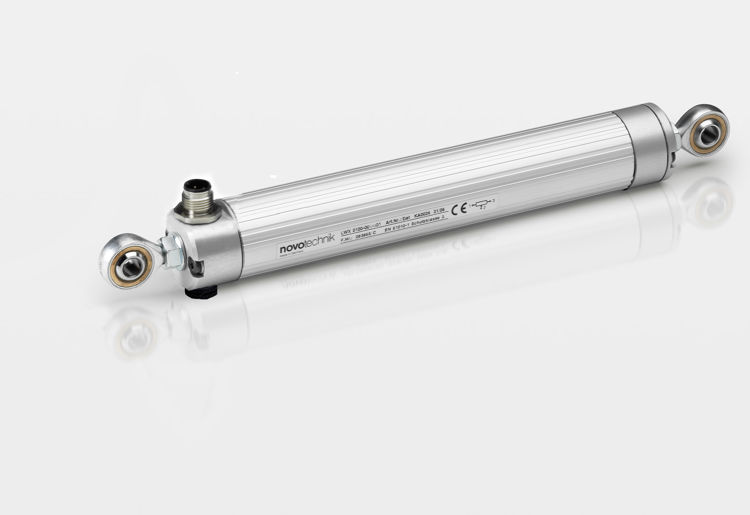

  • Potentiometric, absolut position transducer; robust design with metal flanges and pressure equalisation system with GORE-membran; long life and high adjustment speed; easy to assemble via low-backlash pivot heads with a large angle of freedom; High protection class.



    • Range max: 750 mm
    • Interface: Ratiometric
    • Protection: IP67
    • Temperature: -30° C to 100° C



    More about LWX-003

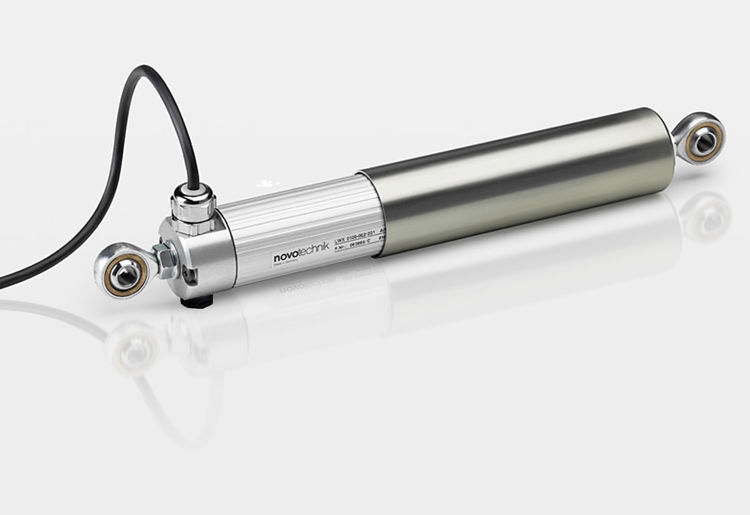

  • Potentiometric , absolut position transducer; robust design with metal flanges, pressure equalisation system, GORE-membran and an additional guard tube for the actuating rod; long life and high adjustment speed; easy to assemble via low-backlash pivot heads with a large angle of freedom; High protection class.



    • Range max: 750 mm
    • Interface: Ratiometric
    • Protection: IP67
    • Temperature: -30° C to 100° C



    More about LWX-004, shaft protected

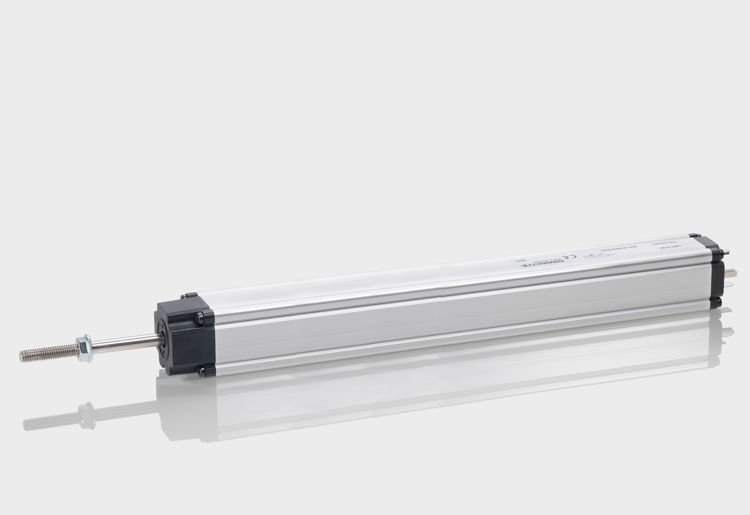

  • Potentiometric, absolut position transducer; pendular fixed slide bearing and decoupled wiper tap for stick-slip-free movement; long life and high adjustment speed; easy to assemble via snap in and all side mountable clamps.



    • Range max: 900 mm
    • Interface: Ratiometric
    • Protection: IP55
    • Temperature: -30° C to 100° C



    More about LWH

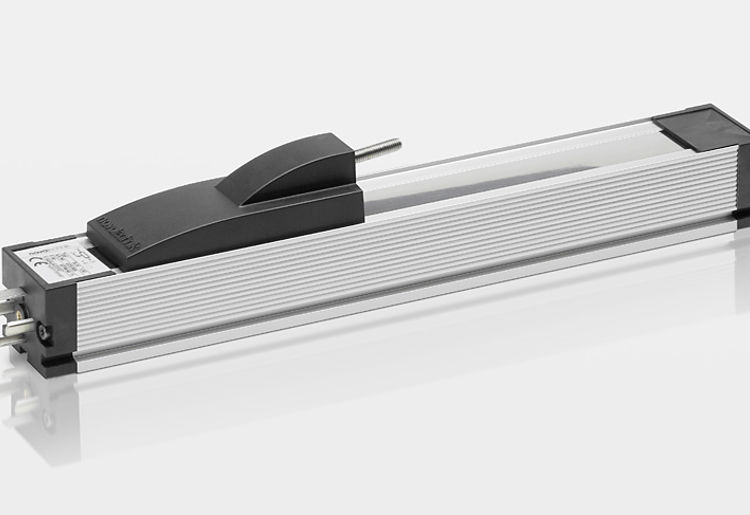

  • Potentiometric, absolut position transducer without actuating rod with lengthwise coupling for reduced overall dimensions; metal wiper carrier; shear force free linkage via ball coupling; long life.



    • Range max: 3000 mm
    • Interface: Ratiometric
    • Protection: IP40, IP54
    • Temperature: -30° C to 100° C



    More about TLH

  • Absolute, potentiometric position transducer in cost-optimised compact design; open housing for mounting in closed devices; variable mechanical customer interface; basic version for customised solutions.

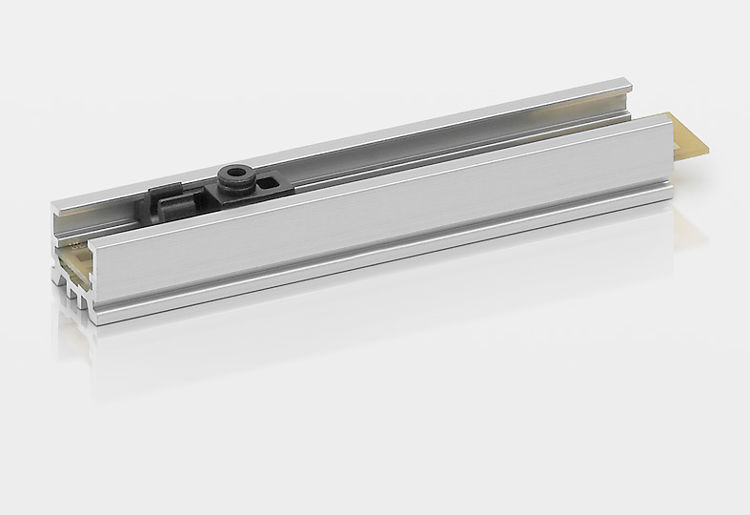

    • Range max: 300 mm
    • Interface: Ratiometric
    • Protection: IP00
    • Temperature: -40° C to 100° C



    More about PTP

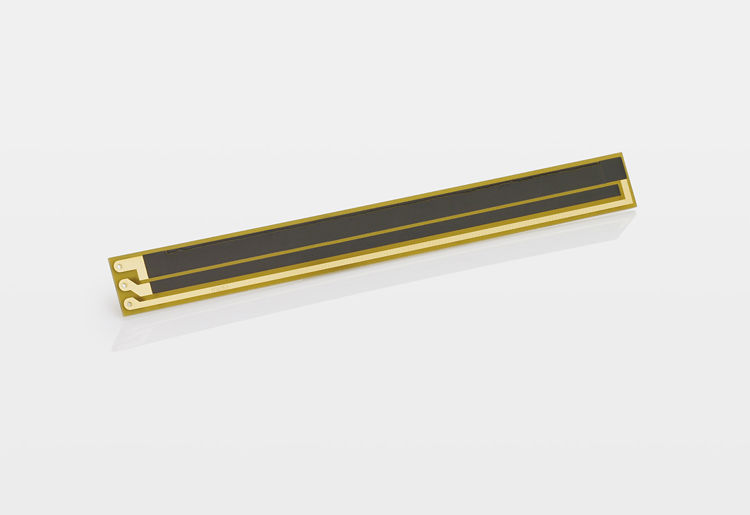

  • Absolute, potentiometric resistance elements and wiper; for mounting in closed devices; customised solutions with laser-linearisation, switch function and redundancy technically feasible.



    • Range max: 250 mm
    • Interface: Ratiometric
    • Protection: IP00
    • Temperature: -40° C to 100° C



    More about PTN

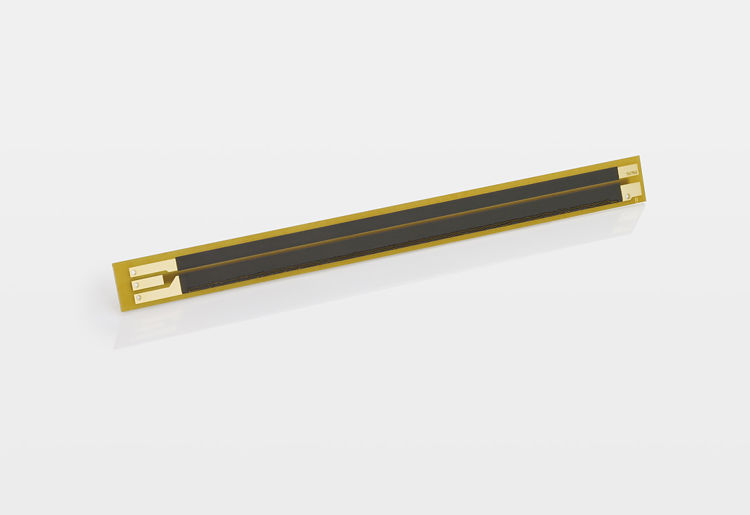

  • Absolute, potentiometric resistance elements and wiper; for mounting in closed devices; customised solutions with laser-linearisation, switch function and redundancy technically feasible.



    • Range max: 300 mm
    • Interface: Ratiometric
    • Protection: IP00
    • Temperature: -40° C to 100° C



    More about PTX

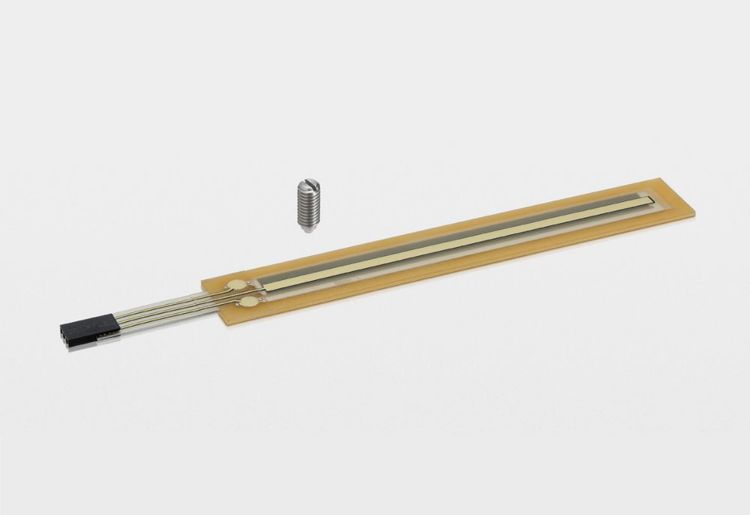

  • Product discontinued - Replacement requirement on request! Potentiometric resistive elements with foil collector and mechanical pressure pin. Hermetically bonded structure. Handling is very simple since the sensitive potentiometer track is protected by the cover sheet.



    • Range max: 500 mm
    • Interface: Ratiometric
    • Protection: IP67
    • Temperature: -40° C to 125° C



    More about LFP

Niklas Börjesson
Area Sales Manager, Cables, Sweden
nib@mekoprint.com

Get in touch with us

Contact sensors



Contact sensors provide a reliable and precise way to measure physical movements or positions through direct mechanical interaction, using components like wipers or sliders. They offer a simple, cost-effective solution for many applications, delivering consistent performance without the need for complex electronics.

Their direct contact design ensures accurate measurements, making them a trusted choice in various industries. While wear may occur over time in high-repetition or harsh environments, they remain a dependable and widely used technology for position sensing.

Non contact sensors



Non-contact sensors provide a highly reliable solution for demanding applications. By measuring with a separate position marker, they operate without friction, minimising wear and maintenance. This enhances durability and ensures consistent performance, even in harsh environments.

With high IP ratings, they offer excellent resistance to dust, moisture, and contamination, making them ideal for long-term use in industrial and outdoor settings.

  • Many applications need rotation counters to measure angles beyond 360º. Common low-cost 10-turn potentiometers often fall short in resolution and reliability, while optical absolute encoders are too expensive for many uses.



    Optical encoders also need continuous power, losing their count when power is interrupted. Geared rotation counters, on the other hand, can wear out over time.



    Novotechnik’s 2800 Series multi-turn rotary sensors provide a practical solution. These sensors use patented NOVOTURN™ technology, based on an advanced giant magnetic resistance effect. They are more cost-effective than optical encoders, maintain high reliability and accuracy, and include additional useful features to meet user needs.

  • When current flows through a Hall element, it generates a voltage perpendicular to the current if a magnetic field is applied vertically. Since this voltage is proportional to the strength of the magnetic field, it allows for easy, contact-free angular measurement by mounting a position magnet on a rotating shaft.



    Recent advancements in this technology have made it highly suitable for precise angular measurements. By combining multiple sensor elements and integrating signal processing into compact components, complex systems can now fit into very small spaces. These systems are highly resistant to aging and unaffected by fluctuations in the magnetic field strength.



    Contact-free systems, whether shaft-guided or without a mechanical shaft connection, enable angular measurements over a full 360° or even across multiple rotations, providing versatile and reliable solutions for a wide range of applications.

  • Magnetostriction is the elastic deformation of ferromagnetic materials like iron, nickel, and cobalt during changes in magnetization. This occurs due to shifts in the alignment of magnetic regions called Weiss domains. When exposed to an external magnetic field, some domains align, causing mechanical deformation and generating a torsion wave that travels at 2,800 m/s.



    A magnetostrictive waveguide is housed along the measuring path, with position marked by an external magnetic field. A short current pulse interacts with this field, creating a torsion wave. The wave's travel time to a converter is measured and processed into a precise position value, offering a reliable and contact-free measurement solution.

  • Non-contact sensors are increasingly needed for harsh environments with dynamic movements and high contamination levels. They offer long service life, even under mechanical stress, and are durable at high speeds and frequencies where potentiometers would wear out.



    These sensors provide standardised electrical interfaces, low power consumption (typically <100mA), and remain cost-effective, making them ideal for demanding applications like engines and agricultural machinery.

  • Advancements in control engineering, microprocessors, and semiconductor technology have led to the widespread adoption of electronically controlled systems across industries. This has driven demand for sensors that are both cost-effective and durable, capable of withstanding extreme temperatures (e.g., -40 to +160°C). These sensors are particularly critical in high-volume applications like the automotive industry.

Interfaces

Interfaces for rotary sensors and linear position transducers enable precise communication of position and motion data to control systems. They support various formats, including analog, digital, and fieldbus, ensuring compatibility, accuracy, and reliability across diverse industrial applications.

    • Multi-master system with distributed network management.
    • Capable of supporting up to 254 logical nodes.
    • Data is organized as parameters (signals) grouped into parameter groups (PGs) across four memory pages (data pages).
    • Each parameter group is uniquely identified by a Parameter Group Number (PGN).
    • Wide variety of methods available for configuring bus device parameters.
    • Includes error detection and handling mechanisms.
    • Device data is accessible through electronic data sheets (EDS files).
    • Additional functionalities include cam switches, limit value switches, and speed data.
    • CANopen is ideal for use as an interface in dynamic applications and complex control networks.
    • Reliable fail-safe digital communication at the sensor level.
    • Cost-effective installation using unshielded 4-pole cables.
    • Seamless integration with existing Ethernet-based or fieldbus communication systems.
    • Supports condition monitoring and predictive maintenance.
    • Material measure is applied to a glass pane or strip and scanned using optical systems.
    • Generates two signals (A and B pulses) with a 90° phase offset, indicating the direction of movement.
    • The number of pulses corresponds to the distance covered, and pulse width depends on the speed of movement.
    • Includes a reference track that outputs a signal once along the measuring distance.
    • The reference signal enables calculation of an absolute position from the incremental A/B pulses.
    • Digital interface for absolute position and rotary measuring systems, ideal for industrial environments.
    • Transmits position data synchronously with the controller via RS 422, using 24- or 25-bit binary or Gray-coded formats.
    • Optional parity bit ("SSI26") for enhanced data security.
    • Clock frequencies range from 60 kHz to 2 MHz, with update rates up to 16 kHz.
    • Reliable, dynamic, and cost-effective, with performance dependent on cable length and driver blocks.
Niklas Börjesson
Area Sales Manager, Cables, Sweden
nib@mekoprint.com

Get in touch with us
