Circular connectors

Circular connectors designed to meet the specific needs of your application. We are working closely with Binder - one of the leading specialists for circular connectors.

Binder connectors logo

Circular connectors

Working with Binder, a specialist for circular connectors, Mekoprint offer a large selection of connectors ranging from miniature connectors to multi-pin power connectors.

We’re here to help you find the best solution, whether for medical applications, tough environments, power connections, or other.

Contact your Mekoprint representative for a detailed discussion about your application and specific needs.

Full programme from Binder

- Snap-in IP40
- Snap-in IP67
- Bayonet IP40
- Bayonet NCC
- Push-pull IP67
- M9 IP40
- M9 IP67
- Snap-in IP67
- Bayonet IP40
- Bayonet NCC
- Push-pull IP67
- M16 IP40
- M16 IP67
- M16-X
- ELC
- PBC15
- Bayonet IP40 Power
- M25 Power
- RD24 Power
- Bayonet HEC Power
- RD30 Power
- ELC
- Snap-in IP67, miniature
- Snap-in IP67, subminiature
- Bayonet NCC
- M5
- M8
- M12-A
- Connecting cords
- M8-D
- M8-D
- M12-B
- M12-D
- M12-X
- M16-X
- M12 Hybrid
- RJ45
- M12-S
- M12-K
- M12-T
- M12-L
- M12-US
- M18
- 7/8

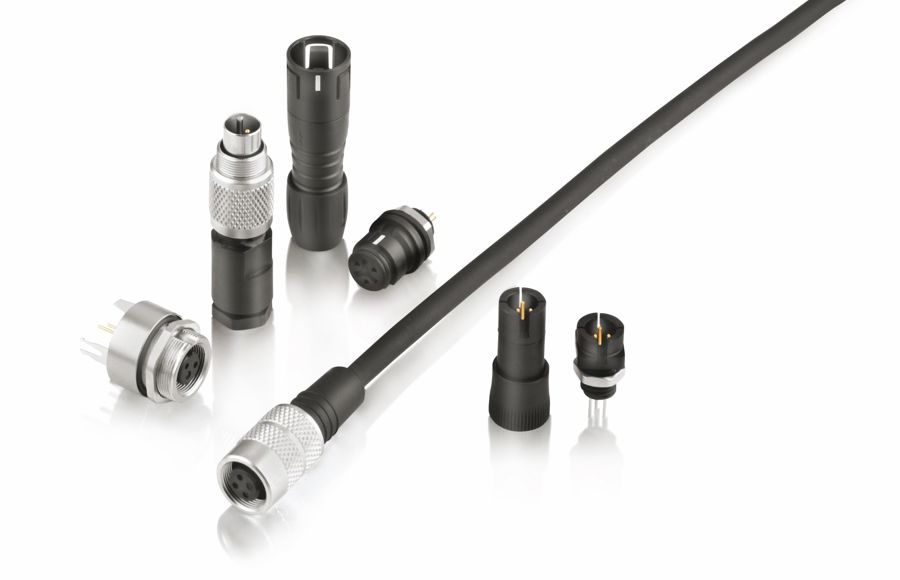

Sub-miniature connectors

Sub-miniature M9 connectors are available with 2 to 8 contacts, suitable for both panel mounting and molded cable connectors. These connectors are shieldable, with cable versions featuring solder termination and panel mount options available in both solder and dip solder terminations.

Rated IP67, they excel in extreme conditions, protecting against dust, moisture, and with an operating
temperature range is -40°C to +85°C.

Compact yet robust, the M9 connectors provide exceptional performance across industries, with both male and female variations available.

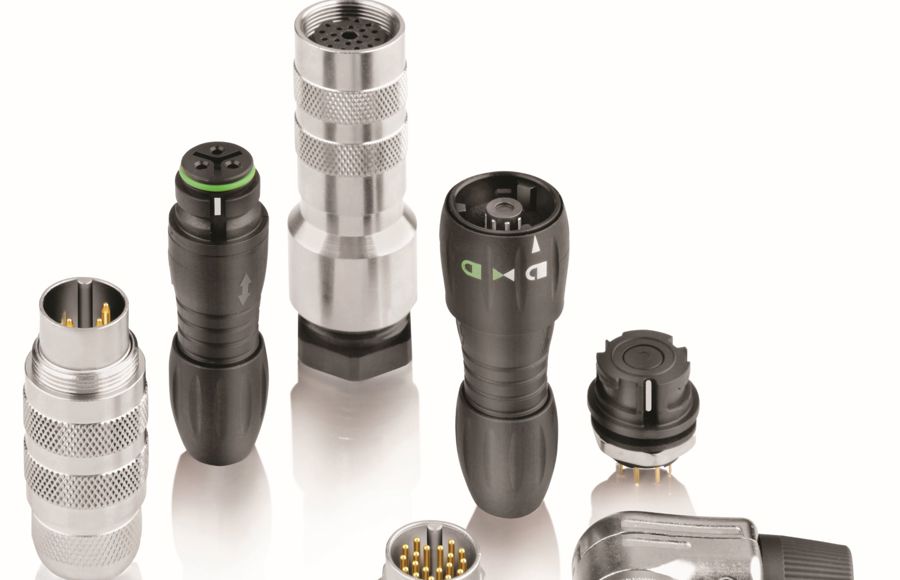

Miniature M16 connectors

In accordance with DIN EN 61076-2-106, M16 connectors, including the 581, 680, and 682 series, come with 2 to 24 contacts and various connection types, including crimp, dip, solder, screw clamp, and standard wire connection.

Options include straight, angled, and flange versions, many of which are shieldable.

Depending on the configuration, these connectors can handle rated currents from 1 A to 7 A.

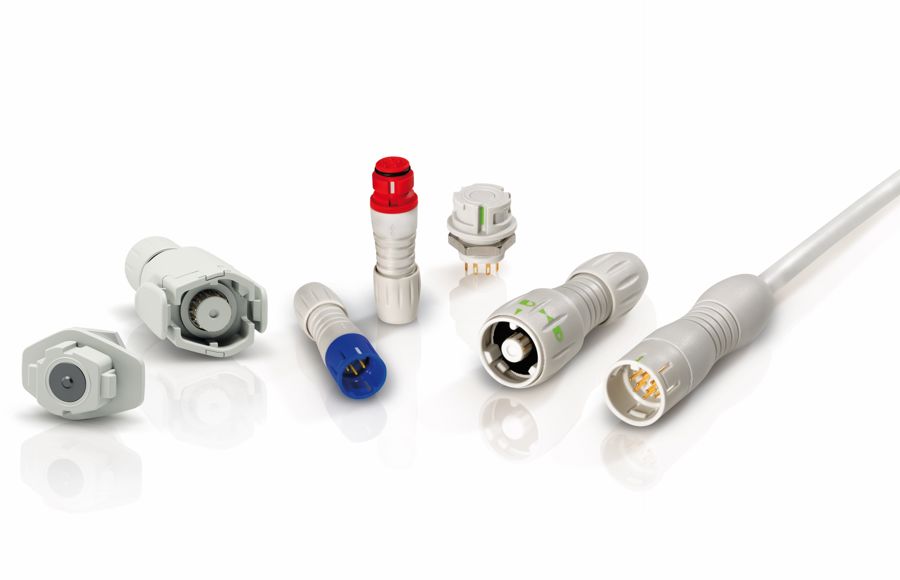

Medical applications

MedTech connectors are crafted from high-quality materials, ensuring reliability and compliance with industry standards. Available in standard grey-white, with other colors upon request, these connectors feature snap-in and bayonet locking mechanisms capable of enduring up to 5,000 mating cycles.

Rated IP54 and IP67, they accommodate 3 to 12 poles with solder and dip solder connections. Additional specifications, such as clearance and creepage distances.

Disinfectant resistance
Biocompatibility (DIN EN ISO 10993-5)
FDA-compliant for aqueous foodstuffs according to regulation EG596/2009
DEHP-free (except contacts)
DIN EN 60601-11 Shock and vibration test
DIN EN 60601-1 Drop test

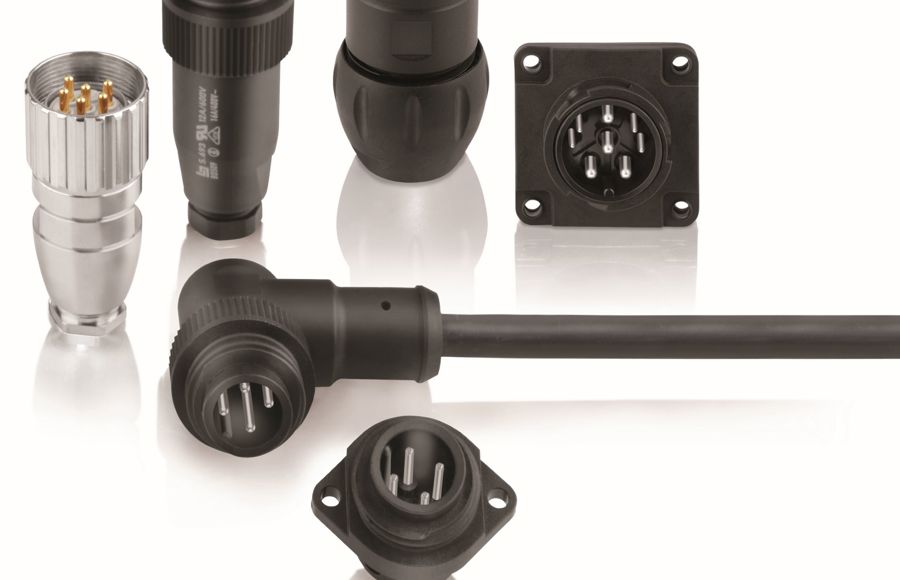

Power connectors

The range of power connectors is designed for low and high voltage applications, including security systems, CCTV, fieldbus Ethernet components, and AC-DC motors. Many models are engineered for extreme environments, suitable for both indoor and outdoor use.

We offer various connection options, including bayonet, M25, and D24 locking systems, with some models being ESTI+, UL, and VDE approved.

Expand your application range with straight, right-angled, or flange versions.

Sensors and actuators

Connector systems for sensors and actuators. Ranging from IP40 to IP69K. Serving with UL, VDE and Ecolab approval, and FDA compliant models.

We offer circular connectors with 2 to 12 contacts and various termination options such as solder, crimp, dip solder, cable, and stranded wire.

Connectors with M5, M8, and M12 screw locking are available in straight, angled, and flanged versions. Additionally, we provide connecting cables, duo connectors, and dual distributors for complete connectivity solutions.

Voltage and power supply

A range of power connectors designed for high-voltage applications, including AC motors, drives, and motor switches, as well as low-voltage uses like fieldbus Ethernet components.

Our primary options include M12, M18, and 7/8-inch circular connectors, with M12 models featuring K and S coding that can handle up to 630V AC.

Key features include nine product series, various locking systems, and coding options such as M12 - S, -K, -T, -L, and -US. With protection ratings from IP20 to IP69K, these connectors provide durability and come with 2 to 8 contacts (including 2+PE, 3+PE, and 4+PE).

They are available in shielded and shieldable designs, with PUR and PVC enclosures, and cable lengths from 0.5 m to 10 m.

Data transmission

7 types of circular connectors designed for signal and data transmission in modern automated factories, primarily featuring M8, M12, and M16 configurations.

The shielded X-coded M12 connector stands out by supporting data transfer rates of up to 10 Gbit/s. These connectors are available across six product series and feature various locking systems.

They include coding options such as M12 - B, -D, and -X, with protection ratings ranging from IP20 to IP69K for enhanced durability.

You can choose from 2 to 8 contacts, and we provide both shielded and shieldable designs.

Our cables come in PUR and PVC materials, with lengths ranging from 0.5 m to 10 m, ensuring reliable performance and versatility for any automation application.
