Flexible printed circuits - FPC

FPC AS AN ALTERNATIVE TO PCB
Etched, copper-plated foils are a highly cost effective alternative to conventional PCBs. In close cooperation with the customer, Mekoprint develops and manufactures single-sided, flexible printed circuits (also called flexprint or FPC).

The flexible circuit is produced on copper-plated foil rolls in combination with screen printing and etching technology. Due to the high conductivity of the copper, the foils are highly suitable as an alternative to traditional PCBs.

The foil-based circuits are flexible in structure (flexible printed circuits). This gives a special opportunity to apply them to curved surfaces, as well as printing continuous patterns across the length of the roll. This is particularly an advantage over the more rigid PCB panels.

FULLY AUTOMATED PRODUCTION

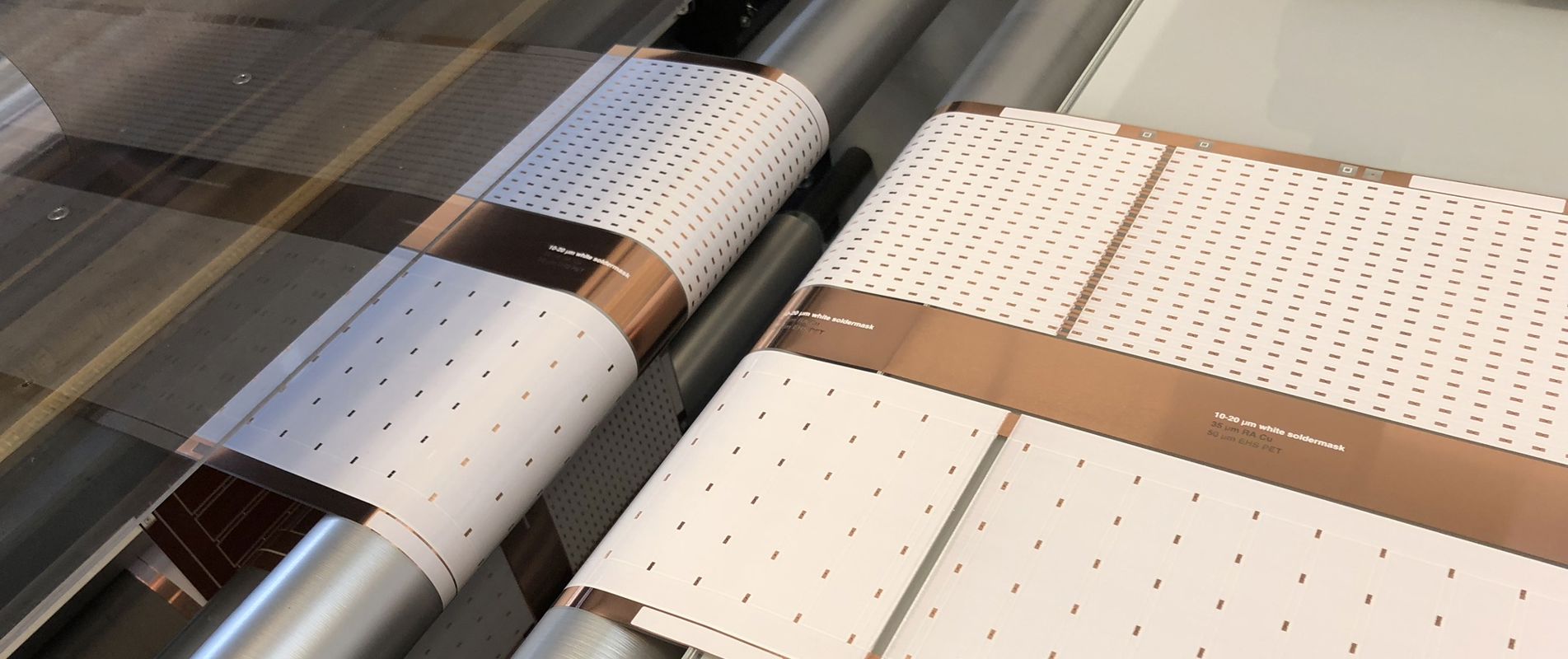

The high degree of automation in Mekoprint’s roll-to-roll production setup creates cost-optimised solutions. The flexible circuit board is produced with minimal manual handling in all the processes – in printing, etching line and final finishing (laser cutting, die cutting, slitting, electrical testing and vision testing).

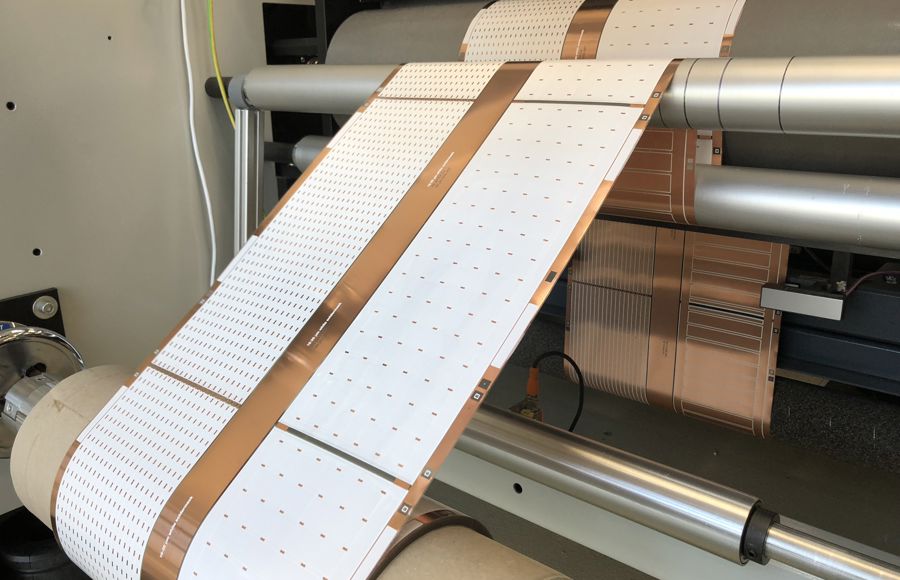

The special R2R-production setup of the flexible circuit on continuous foil rolls has significant advantages as regards cost, production time and quality.

FPC foils are delivered as single items stamped into format, on sheets or on rolls, prepared for fully automatic pick-and-place in the further processing in the customer’s production.

LED SUBSTRATE

With its high electrical conductivity, compared to, e.g. printed silver, flexible copper foils have proved particularly suitable for flexible LED panels.

The applications on curved surfaces is also a design and cost effective alternative to rigid PCBs.

ANTENNAS

Copper-based antennas are often used for communications in radio, radar and telecommunications systems.

FPC antennas can be used in all products that require measurement and communication. Due to the cost-effective production methods and uniform quality level, they are particularly useful in products sold in high volume.

SENSORS

Sensors produced on copper foils can be developed in all sizes and varieties.

IoT products are gaining ground among both consumers and professionals. In these applications, printed and etched sensors can be particularly suitable.

One example of use is as fall sensors which, when placed under the floor in sheltered housing units for the elderly and assisted living facilities detect people’s position and movement on the floor. In case of a fall, a notification is sent to care assistants immediately.
